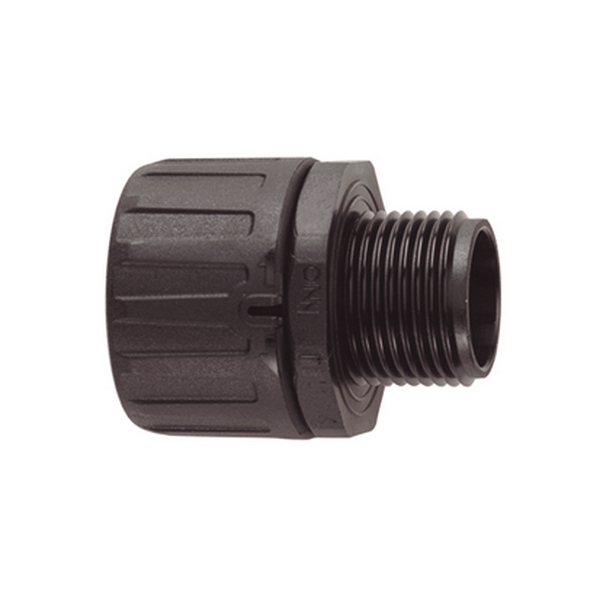

HelaGuard® Non-Metallic IP66 Fitting, Straight, 2" NPT Thread, 2" Dia., PA66, Black, 1/pkg
Part No. 166-90308
|
Copied
- External NPT thread provides a secure connection.
- Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits.
- All-around "teeth" attach firmly to conduit and deliver a high extraction force.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP66 fitting has one-piece construction.
Show more
Show less
| Brand Family | HelaGuard® |
| Color | Black (BK) |
| Description | HelaGuard Non-Metallic Straight fitting features a snap-on design that provides a quick, secure connection. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. IP66 ingress protection rated fittings. |
| Global Part Number | HG200-S-2000-PA66-BK |
| Part Number | 166-90308 |
| Product Family | Flexible Conduit Fittings |
| Product Subfamily | HelaGuard |
| Short Description | HelaGuard® Non-Metallic IP66 Fitting, Straight, 2" NPT Thread, 2" Dia., PA66, Black, 1/pkg |
| Type | HG200-S-2000 |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| IP-Rating | IP66 |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | E229161 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UV Resistant | No |
