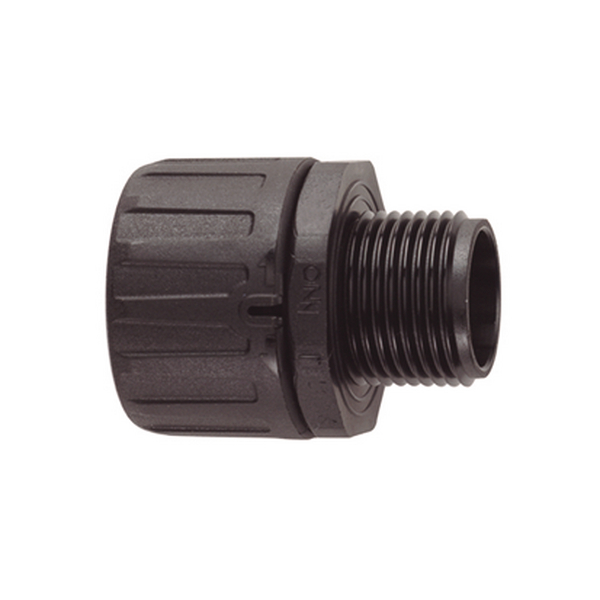

HelaGuard® Non-Metallic IP66 Fitting, Straight, NPT Thread, 1.25" Dia, PA66, Black, 2/pkg
Art.-No. 166-90107
|
|
Copied
- External NPT thread provides a secure connection.
- Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits.
- All-around "teeth" attach firmly to conduit and deliver a high extraction force.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP66 fitting has one-piece construction.
Show more
Show less
| Color | Black (BK) |
| Connection Type | Snap-connection |
| Description | HelaGuard Non-Metallic Straight fitting features a snap-on design that provides a quick, secure connection. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. IP66 ingress protection rated fittings. |
| PART DESCRIPTION | HG125-S-1250-PA66-BK |
| Packaging Type | pack |
| Part No. | 166-90107 |
| Product Subfamily | HelaGuard |
| Product family | Flexible Conduit Fittings |
| Short Description | HelaGuard® Non-Metallic IP66 Fitting, Straight, NPT Thread, 1.25" Dia, PA66, Black, 2/pkg |
| Type | HG125-S-1250 |
| UV Resistant | No |
| Bore Diameter (metric) | 32.5 |
| Bore Hole Diameter (imperial) | 1.28" |
| Clearance Hole Diameter (imperial) | 1.649" |
| Clearance Hole Diameter (metric) | 41.9mm |
| Length (imperial) | 2.36" |
| Length (metric) | 60mm |
| Nominal Diameter (imperial) | 1.25" |
| Nominal Diameter (metric) | 42mm |
| Outside Diameter (imperial) | 2.48" |
| Outside Diameter (metric) | 63mm |
| Swivel Thread (Y/N) | No |
| Thread Length (imperial) | 0.63" |
| Thread Length (metric) | 16mm |
| Thread Size (imperial) | 1-1/4 " |
| Thread Type | NPT |
| Trade Size | 1-1/4 " |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| IP-Rating | IP66 |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E229161 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
