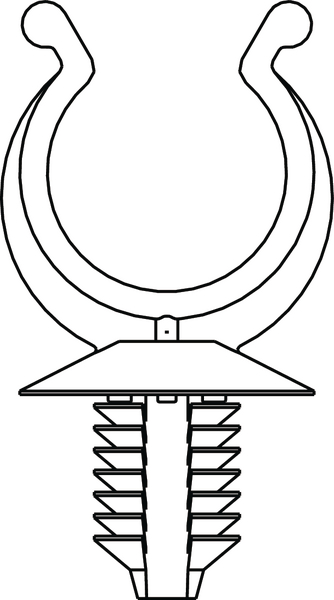

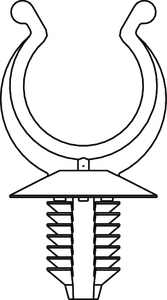

Side Convoluted Tubing Clip, Max Bundle Diameter .6", PA66HIRHS, Black, 5000/pkg
Art.-No. 151-00783
|
|
Copied
- Clip includes an internal rib that spans the inside of the bracket to fit securely into the profile of the tubing to prevent lateral movement and slipping of the tubing.
- Extended fir tree allows for a wide range of panel thicknesses.
- Fir tree design provides low insertion forces and high extraction forces.
| Application | CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed. |
| Color | Black (BK) |
| Description | Convoluted Tube Clips provide a quick and easy method for firmly securing corrugated covered cables and wires to a surface. Applications such as this can be found in a wide variety of industries such as the wire harness, automotive, trucking, and heavy equipment manufacturing industries. |
| Global Part Number | CTCFT6-PA66HIRHS-BK |
| Key product features | for convoluted tubes or with rib, reusable, removable |
| Packaging Type | pack |
| Part No. | 151-00783 |
| Product Subfamily | Convoluted Tubing Clips |
| Product family | Convoluted Tubing Accessories |
| Short Description | Side Convoluted Tubing Clip, Max Bundle Diameter .6", PA66HIRHS, Black, 5000/pkg |
| Type | CTCFT6 |
| UV Resistant | No |
| Attaches to Diameter (metric) | 15.0 |
| Bundle Diameter Max. (imperial) | 0.59" |
| Bundle Diameter Max. (metric) | 15.0mm |
| Bundle Diameter Min. (imperial) | 0.43" |
| Bundle Diameter Min. (metric) | 11.0mm |
| Cable Diameter Max. (Metric) | 15mm |
| Cable Diameter Min. (metric) | 11mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 0.73" |
| Height (metric) | 18.5mm |
| Height 2 (imperial) | 0.37" |
| Height 2 (metric) | 9.3mm |
| Length (imperial) | 0.43" |
| Length (metric) | 11.0mm |
| Mounting Hole Diameter (imperial) | 0.25 - 0.26 " |
| Mounting Hole Diameter (metric) | 6.3 - 6.7 mm |
| Mounting Hole Diameter Max. (imperial) | 0.26" |
| Mounting Hole Diameter Min. (imperial) | 0.25" |
| Nominal Diameter (imperial) | 1.56" |
| Nominal Diameter (metric) | 15.0mm |
| Panel Thickness (imperial) | 0.03 - 0.18" |
| Panel Thickness (metric) | 0.7 - 4.5mm |
| Panel Thickness Max. (Imperial) | 0.18" |
| Panel Thickness Max. (Metric) | 4.5mm |
| Panel Thickness Min. (Imperial) | 0.03" |
| Panel Thickness Min. (Metric) | 0.7mm |
| Width (imperial) | 0.43" |
| Width (metric) | 11.0mm |
