Cable Guide Standoff, 1.0" Max Bundle Diameter, PA66HIRHS, Black, 150/pkg
Art.-No. 133-00285
|
|
Copied
- Tubes are fixed a defined distance from the substructure.
- Defined diameter for the wire entry.
- Retainer is fixed in the hole with BHT-tie.
| Application | This heavy duty fixing element can be used to guide tubes in a defined distance to the substructure. |
| Color | Black (BK) |
| Description | This cable guide standoff is designed for the use with HellermannTyton’s button head ties. The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-through of salt, dirt and other impurities from the road, preventing unwanted build-up on hoses and harnesses. This product perfectly secures convoluted tubing’s up to 26mm in diameter. |
| Global Part Number | CGS2-PA66HIRHS-BK |
| Key product features | for convoluted tubes or with rib |
| Packaging Type | pack |
| Part No. | 133-00285 |
| Product Subfamily | Cable Guide Standoffs |
| Product family | Corrugated Tube Clips |
| Short Description | Cable Guide Standoff, 1.0" Max Bundle Diameter, PA66HIRHS, Black, 150/pkg |
| Type | CGS2 |
| UV Resistant | Yes |
|
|
|
| Bundle Diameter Max. (imperial) | 1.02" |
| Bundle Diameter Max. (metric) | 25.9mm |
| Bundle Diameter Min. (imperial) | 0" |

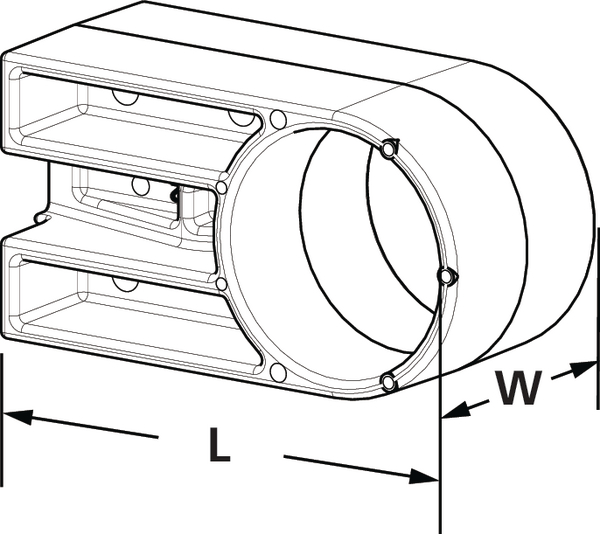

| Length (imperial) | 3.23" |
| Length (metric) | 82.04mm |
| Mounting Hole Diameter (imperial) | 0.50 " |
| Mounting Hole Diameter (metric) | 12.7 mm |
| Mounting Hole Diameter Min. (imperial) | 0.5" |
| Width (imperial) | 1.5" |
| Width (metric) | 38.1mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
