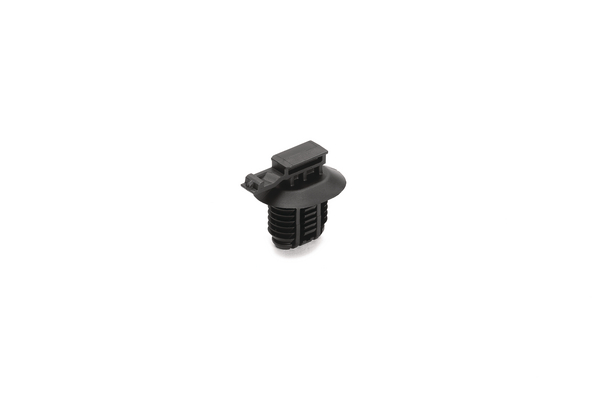

Connector Clip with Oval Fir Tree, 9.0 - 17.0mm Hole Dia, PA66HIRHSUV, Black, 2000/carton
Art.-No. 151-01397
|
|
Copied
- Connector clip design to meet USCAR EWCAP-005-7 clip slot specifications, assuring compliance.
- Meets installation and extraction requirements of SAE/USCAR-2, delivering easy insertion with reliable performance.
- Long fir tree designed for use in thicker panels up to 9.5 mm.
- Oval fir tree prevents rotation in 9x17 mm holes.
| Application | Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole. |
| Color | Black (BK) |
| Description | Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole. |
| Global Part Number | CC20-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-01397 |
| Product Subfamily | Connector Clips |
| Product family | Self-Affixing Clips |
| Short Description | Connector Clip with Oval Fir Tree, 9.0 - 17.0mm Hole Dia, PA66HIRHSUV, Black, 2000/carton |
| Type | CC20 |
| UV Resistant | Yes |
| Fixation Method | Fir Tree for oval holes |
| Height (imperial) | 1.03" |
| Height (metric) | 26.1mm |
| Height 2 (imperial) | 0.65" |
| Height 2 (metric) | 16.5mm |
| Hole Depth Max. (imperial) | 0.37" |
| Hole Depth Max. (metric) | 9.5mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Length (imperial) | 1.00" |
| Length (metric) | 25.5mm |
| Min. Tensile Strength (imperial) | 35lbs |
| Min. Tensile Strength (metric) | 155N |
| Mounting Hole Diameter (imperial) | 0.35 x 0.67 " |
| Mounting Hole Diameter (metric) | 9.0 x 17.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.35" |
| Mounting Hole Diameter Min. (imperial) | 0.35" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.37" |
| Panel Thickness (metric) | 0.6 - 9.5mm |
| Panel Thickness Max. (Imperial) | 0.37" |
| Panel Thickness Max. (Metric) | 9.5mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Slot Size (W2) | 7.0mm |
| Width (imperial) | 0.80" |
| Width (metric) | 20.3mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| EWCAP Standard | EWCAP-005-7 |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
