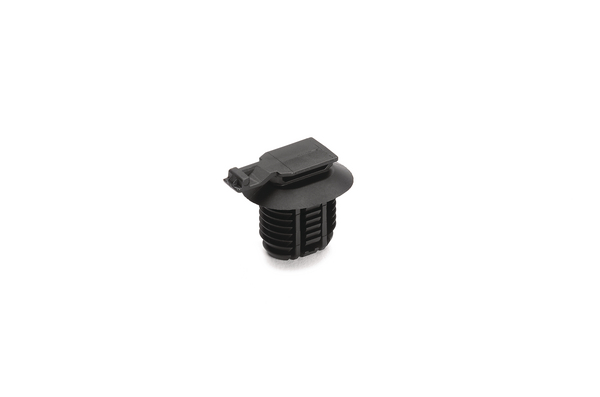

Connector Clip with Oval Fir Tree, 12.0 - 17.0mm Hole Dia, PA66HIRHSUV, Black, 4000/carton
Art.-No. 151-01199
|
|
Copied
- HellermannTyton connector clips provide a simple and easy method for mounting connectors to a mounting surface in a variety of applications.
- Detailed designs include anti-rattle disc features, anti-rotation oval fir trees, and clamps for mounting on edges.
- HellermannTyton offers an assortment of connector clips that are available for a variety of connector slot designs found on most of the largest global connector manufacturers.
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Color | Black (BK) |
| Description | Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole. |
| Global Part Number | CC15-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-01199 |
| Product Subfamily | Connector Clips |
| Product family | Self-Affixing Clips |
| Short Description | Connector Clip with Oval Fir Tree, 12.0 - 17.0mm Hole Dia, PA66HIRHSUV, Black, 4000/carton |
| Type | CC15 |
| UV Resistant | Yes |
| Fixation Method | Fir Tree for oval holes |
| Height (imperial) | 0.93" |
| Height (metric) | 23.6mm |
| Height 2 (imperial) | 0.65" |
| Height 2 (metric) | 16.6mm |
| Hole Depth Max. (imperial) | 0.35" |
| Hole Depth Max. (metric) | 9.0mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Length (imperial) | 1.19" |
| Length (metric) | 30.3mm |
| Mounting Hole Diameter (imperial) | 0.47 x 0.67 " |
| Mounting Hole Diameter (metric) | 12.0 x 17.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.47" |
| Mounting Hole Diameter Min. (imperial) | 0.47" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.35" |
| Panel Thickness (metric) | 0.6 - 9.0mm |
| Panel Thickness Max. (Imperial) | 0.35" |
| Panel Thickness Max. (Metric) | 9.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Slot Size (W2) | 11.0mm |
| Width (imperial) | 0.80" |
| Width (metric) | 20.3mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| EWCAP Standard | EWCAP-005-11 |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
