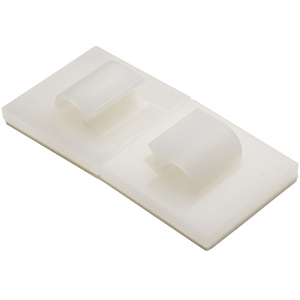

RB Adhesive Cable Clamp, 0.20" Max. Bundle Dia, PA66, Natural, 100/pkg
Art.-No. 151-14059
|
|
Copied
This product is not available anymore.
- Simple snap-in design allows for quick and easy installation or removal of cables.
- Rubber based adhesive allows for a permanent bond to most surfaces.
| Application | RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications. |
| Color | Natural (NA) |
| Description | The RB Adhesive cable clamps are designed with an easy snap-in feature allowing simple installation or removal of cables, pipes or hoses. The rubber based adhesive allows for a permanent bond to most surfaces. |
| PART DESCRIPTION | RB5-PA66-NA |
| Packaging Type | pcs. |
| Part No. | 151-14059 |
| Short Description | RB Adhesive Cable Clamp, 0.20" Max. Bundle Dia, PA66, Natural, 100/pkg |
| Type | RB5 |
| UV Resistant | No |
| Bundle Diameter Max. (imperial) | 0.20" |
| Bundle Diameter Max. (metric) | 5.0mm |
| Fixation Method | Pasting / Stick |
| Height (imperial) | 0.24" |
| Height (metric) | 6.0mm |
| Length (imperial) | 0.75" |
| Length (metric) | 19.0mm |
| Nominal Diameter (imperial) | 0.19" |
| Nominal Diameter (metric) | 5.0mm |
| Trade Size | 3/16 " |
| Width (imperial) | 0.75" |
| Width (metric) | 19.0mm |
| Width 2 (imperial) | 0.38" |
| Width 2 (metric) | 9.7mm |
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Flammability | UL 94 V-2 (excluding adhesive) |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
