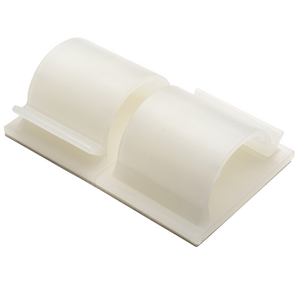

RB Adhesive Cable Clamp, 0.55" Max. Bundle Dia, PA66, Natural, 200/pkg
Part No. 151-00506
| RB14L4
|
Copied
- Simple snap in design allows for quick and easy installation or removal of cables.
- Rubber based adhesive allows for a permanent bond to most surfaces.
| Brand Family | RB-Series |
| Color | Natural (NA) |
| Description | The RB Adhesive cable clamps are designed with an easy snap in feature allowing simple installation or removal of cables, pipes or hoses. The rubber based adhesive allows for a permanent bond to most surfaces. Available in three sizes. |
| Global Part Number | RB14-PA66-NA |
| Part Number | RB14L4 |
| Product Family | Self-Affixing Clamps |
| Product Subfamily | Adhesive Cable Clamps |
| Short Description | RB Adhesive Cable Clamp, 0.55" Max. Bundle Dia, PA66, Natural, 200/pkg |
| Type | RB14 |
| Bundle Diameter Max. (imperial) | 0.55" |
| Bundle Diameter Max. (metric) | 14.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Fixation Method | Pasting / Stick |
| Height (imperial) | 0.63" |
| Height (metric) | 16.0mm |
| Length (imperial) | 1.3" |
| Length (metric) | 33.2mm |
| Nominal Diameter (imperial) | 0.5" |
| Nominal Diameter (metric) | 14mm |
| Trade Size | 1/2 " |
| Width (imperial) | 1.1" |
| Width (metric) | 27.4mm |
| Width 2 (imperial) | 0.9" |
| Width 2 (metric) | 23.0mm |
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 (excluding adhesive) |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
