LOC Locking Clamp, 42-48 mm, With 6.5 mm Fir Tree, PA66HIRHSUV, Black, 300/carton
Art.-No. 151-04229
|
|
Copied

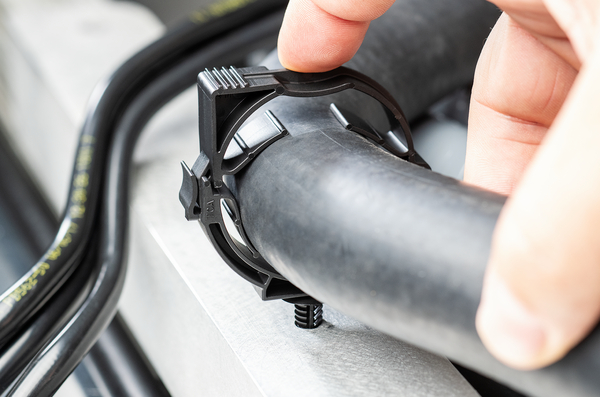

- The 360-degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing but significant enough to allow for manual disengagement if service is needed.
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Color | Black (BK) |
| Description | HellermannTyton’s Locking Clamp is ideal for fastening wire and cable bundles to panels. The special design dynamically fits various bundle sizes. Its uniquely engineered fir tree holds tightly in pre-stamped 6.5 mm holes. The clamp is manufactured of an impact-modified Polyamide 6.6 material for increased flexibility, heat resistance and UV stabilization to deliver years of dependable performance. It is easy to install and operate with a single hand and does not require tools, saving time and labor costs. |
| PART DESCRIPTION | LOC42-48FT6.5-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 151-04229 |
| Product Subfamily | LOC Clamps with Fir Tree |
| Product family | Self-Affixing Clamps |
| Short Description | LOC Locking Clamp, 42-48 mm, With 6.5 mm Fir Tree, PA66HIRHSUV, Black, 300/carton |
| Type | LOC42-48FT6.5 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 1.89" |
| Bundle Diameter Max. (metric) | 48.0mm |
| Bundle Diameter Min. (imperial) | 1.65" |
| Bundle Diameter Min. (metric) | 42.0mm |
| Depth (imperial) | 0.59" |
| Depth (metric) | 15.0mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 4.29" |
| Height (metric) | 108.9mm |
| Length (imperial) | 3.73" |
| Length (metric) | 94.8mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Round |
| Nominal Bundle Diameter (imperial) | 1.65 - 1.89 " |
| Nominal Bundle Diameter (metric) | 42.0 - 48.0 mm |
| Panel Thickness (imperial) | 0.6 - 0.24" |
| Panel Thickness (metric) | 0.6 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.59" |
| Width (metric) | 15.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
