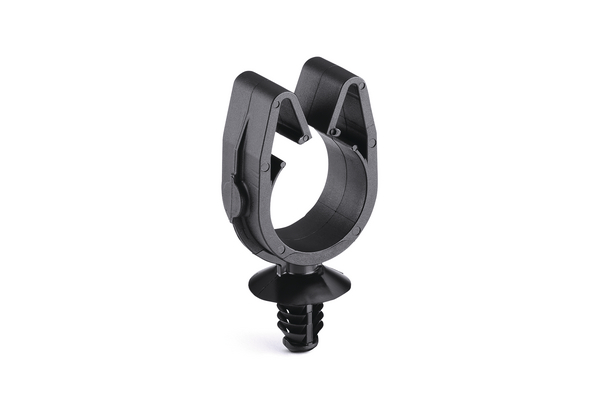

MOC Clip, 19 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black, 3000/ctn
Art.-No. 151-01788
|
|
Copied
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Color | Black (BK) |
| Description | The MOC with Round Fir Tree features HellermannTyton's unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel. |
| Key product features | removable |
| PART DESCRIPTION | MOC19FT6.5-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-01788 |
| Product Subfamily | MOC Clips with Fir Tree |
| Product family | Self-Affixing Clips |
| Short Description | MOC Clip, 19 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black, 3000/ctn |
| Type | MOC19FT6.5 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.86" |
| Bundle Diameter Max. (metric) | 21.8mm |
| Bundle Diameter Min. (imperial) | 0.67" |
| Bundle Diameter Min. (metric) | 17.0mm |
| Depth (imperial) | 0.47" |
| Depth (metric) | 12.0mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 1.91" |
| Height (metric) | 48.5mm |
| Length (imperial) | 1.07" |
| Length (metric) | 27.3mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 ", 0.25 " (HEXAGONAL) |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm, 6.35 mm (hexagonal) |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Circular |
| Nominal Bundle Diameter (imperial) | 0.75" |
| Nominal Bundle Diameter (metric) | 19.0 mm |
| Panel Thickness (imperial) | 0.02 - 0.22" |
| Panel Thickness (metric) | 0.6 - 5.5mm |
| Panel Thickness Max. (Imperial) | 0.22" |
| Panel Thickness Max. (Metric) | 5.5mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
