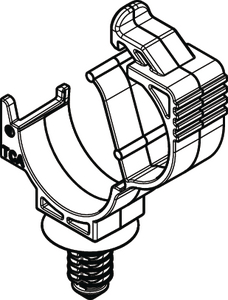

Locking Clip, 15-19mm, with FT6 Fir Tree, PA46, Gray, 2000/box
Part No. 151-01285
|
Copied
- The 360-degree enclosure ensures the entire bundle is secure within the clamp.
- Locking tab is small enough to not interfere with wires, but significant enough to allow for manual disengagement if service is needed.
- Disc around fir tree eliminates potential debris and water ingress into panel hole.
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Color | Gray (GY) |
| Description | The Locking Omega Clamp fuly encircles and securely locks around wire bundles ranging from 15-19 mm. Its uniquely engineered fir tree holds tightly in hole sizes from 6.1 mm to 7 mm. It is easy to install and operate with a single hand and does not require tools, saving time and labor costs. |
| Global Part Number | LOC15-19FT6LG-PA46-GY |
| Key product features | lockable |
| Packaging Type | carton |
| Part No. | 151-01285 |
| Short Description | Locking Clip, 15-19mm, with FT6 Fir Tree, PA46, Gray, 2000/box |
| Type | LOC15-19FT6LG |
| Bundle Diameter Max. (imperial) | 0.75" |
| Bundle Diameter Max. (metric) | 19.0mm |
| Bundle Diameter Min. (imperial) | 0.59" |
| Bundle Diameter Min. (metric) | 15.0mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 2.57" |
| Height (metric) | 65.27mm |
| Length (imperial) | 1.67" |
| Length (metric) | 42.42mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Panel Thickness Max. (Imperial) | 0.32" |
| Panel Thickness Max. (Metric) | 8.25mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.60mm |
| Width (imperial) | 0.47" |
| Width (metric) | 12.0mm |
