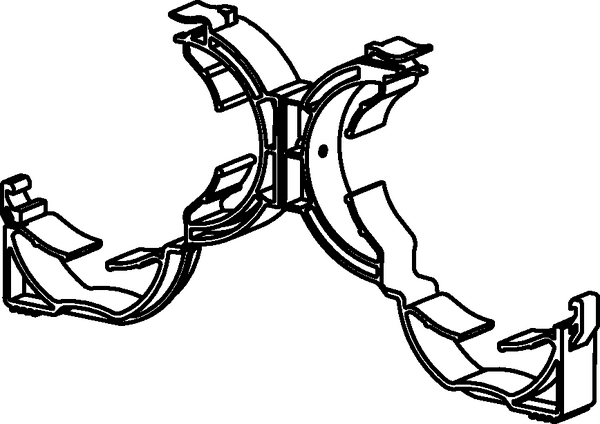

LOC to LOC Bundle Separator Clamp, 38-43mm, PA66HIRHSUV, Black, 300/ctn
Art.-No. 156-04153
|
|
Copied
- Fully enclosed clamp prevents slip, crush and fallout under vacuum.
- Resistance against axial slide is 2.5x greater than competitor designs.
- Tension arms allow for hose swelling of up to 12% .
- Uses common MOC/LOC coupler for a large range of dual configurations.
| Color | Black (BK) |
| Description | A robust clamp for radiator hoses and other large bundles that limits axial slide and rotation with fasteners that meet USCAR 44 testing standards and can be assembled to any MOC/LOC or omega clip. |
| PART DESCRIPTION | LOC38-43F38-43M-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 156-04153 |
| Product Subfamily | LOC Clamp to LOC Clamp Bundle Separators |
| Product family | Clamps |
| Short Description | LOC to LOC Bundle Separator Clamp, 38-43mm, PA66HIRHSUV, Black, 300/ctn |
| Type | LOC38-43F38-43M |
| UV Resistant | Yes |
| Bundle Diameter 2 Max. (imperial) | 1.69" |
| Bundle Diameter 2 Max. (metric) | 43.0mm |
| Bundle Diameter 2 Min. (imperial) | 1.50" |
| Bundle Diameter 2 Min. (metric) | 38.0mm |
| Bundle Diameter Max. (imperial) | 1.69" |
| Bundle Diameter Max. (metric) | 43.0mm |
| Bundle Diameter Min. (imperial) | 1.5" |
| Bundle Diameter Min. (metric) | 38.0mm |
| Depth (imperial) | 0.31" |
| Depth (metric) | 8.0mm |
| Height (imperial) | 2.48" |
| Height (metric) | 62.93mm |
| Length (imperial) | 4.57" |
| Length (metric) | 116.1mm |
| Length 2 (imperial) | 2.45" |
| Length 2 (metric) | 62.2mm |
| Nominal Bundle Diameter (imperial) | 1.50 - 1.69 " |
| Nominal Bundle Diameter (metric) | 38.0 - 43.0 mm |
| Width (imperial) | 4.57" |
| Width (metric) | 116.1mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
