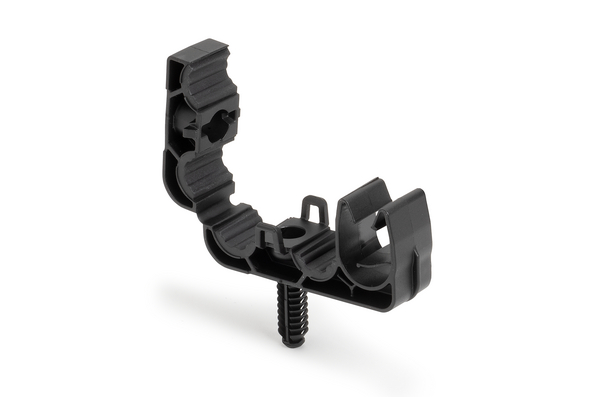

Soft-Grip Dual Clamp with Optional Clip, 12 mm, 10 mm, 10 mm, 6.5 mm Fir Tree, PA66HIRHSUV/TPE, Black, 650/ctn
Art.-No. 151-04423
|
|
Copied
- Soft TPE over-mold on clamps prevents axial slide/rotation and protects sensitive cables.
- Clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Versatile high-performance fir tree design demonstrates easy push-in force with high pull-out strength.
- All-in-one bundling and fastening solution reduces costs and assembly time.

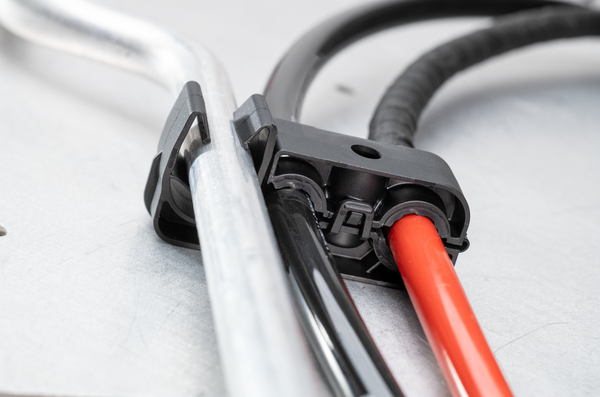

| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Color | Black (BK) |
| Description | Built to accommodate three parallel configurations, this clamp is fully compatible with one 12 mm and two 10 mm routings, making it a versatile solution for managing multiple lines while maintaining an organized and stable routing system. |
| Global Part Number | DBLCLMP10MOC12FT6LG-PA66HIRHSUV/TPE-BK |
| Packaging Type | pack |
| Part No. | 151-04423 |
| Short Description | Soft-Grip Dual Clamp with Optional Clip, 12 mm, 10 mm, 10 mm, 6.5 mm Fir Tree, PA66HIRHSUV/TPE, Black, 650/ctn |
| Type | DBLCLMP10MOC12FT6LG |
| UV Resistant | Yes |
| Bundle Diameter 2 Max. (imperial) | 0.39" |
| Bundle Diameter 2 Max. (metric) | 10.0mm |
| Bundle Diameter 2 Min. (imperial) | 0.39" |
| Bundle Diameter 2 Min. (metric) | 10.0mm |
| Bundle Diameter Max. (imperial) | 0.54" |
| Bundle Diameter Max. (metric) | 13.8mm |
| Bundle Diameter Min. (imperial) | 0.41" |
| Bundle Diameter Min. (metric) | 10.5mm |
| Depth (imperial) | 0.63" |
| Depth (metric) | 16.0mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 1.90" |
| Height (metric) | 48.5mm |
| Length (imperial) | 2.48" |
| Length (metric) | 63.1mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Panel Thickness (imperial) | 0.06 - 0.47" |
| Panel Thickness (metric) | 1.5 -12.0mm |
| Panel Thickness Max. (Imperial) | 0.47" |
| Panel Thickness Max. (Metric) | 12.0mm |
| Panel Thickness Min. (Imperial) | 0.06" |
| Panel Thickness Min. (Metric) | 1.50mm |
| Width (imperial) | 2.48" |
| Width (metric) | 63.1mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, TPE |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
