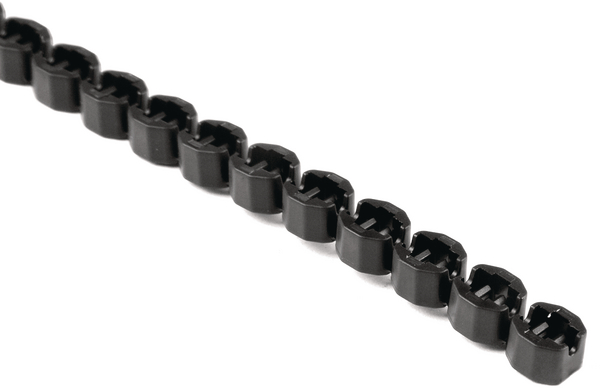

Cable Tie Closures for ATS Systems, 50lb Tensile Strength, PA66HSUV, Black, 5000/reel
Part No. 102-66210
| ATS10266210
|
Copied
- Available in packages of 5,000 closures for high-volume applications.
| Brand Family | Autotool |
| Color | Black (BK) |
| Description | The cable tie closure for the ATS Flex is designed for optimized material utilization. This innovative two-piece system consists of a separate strap and closure, eliminating waste and the associated jobsite cleanup. |
| Global Part Number | Closures_Black_ATS-PA66HSUV-BK |
| Operation | electrical |
| Part Number | ATS10266210 |
| Product Family | Cable Tie Application Tools |
| Product Subfamily | Cable Ties for Automatic Tools |
| Short Description | Cable Tie Closures for ATS Systems, 50lb Tensile Strength, PA66HSUV, Black, 5000/reel |
| Technical Description | Cable Tie Closures for ATS3080, Black |
| Type | Closures_Black_ATS |
|
|
|
| Bundle Diameter Max. (imperial) | 3.94" |
| Bundle Diameter Max. (metric) | 100mm |
| Bundle Diameter Min. (imperial) | 0" |
| Bundle Diameter Min. (metric) | 0.0mm |
| Cable Tie Head Width (metric) | 8.0mm |
| Height (imperial) | 0.212" |
| Height (metric) | 5.4mm |
| Identification Plate Position | none |
| Length (imperial) | 0.35" |
| Length (metric) | 9.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Reel Diameter (imperial) | 15.25" |
| Reel Diameter (metric) | 387mm |
| Reel Width (imperial) | 3.5" |
| Reel Width (metric) | 88.9mm |
| Releasable Closure (Y/N) | No |
| Width (imperial) | 0.31" |
| Width (metric) | 8.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Hazardous Goods | No |
| Material | PA66HSUV |
| Material | Polyamide 6.6 heat and UV stabilized (PA66HSUV) |
| Nato number / cage code | 5975-12-377-3450 |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UV Resistant | Yes |
