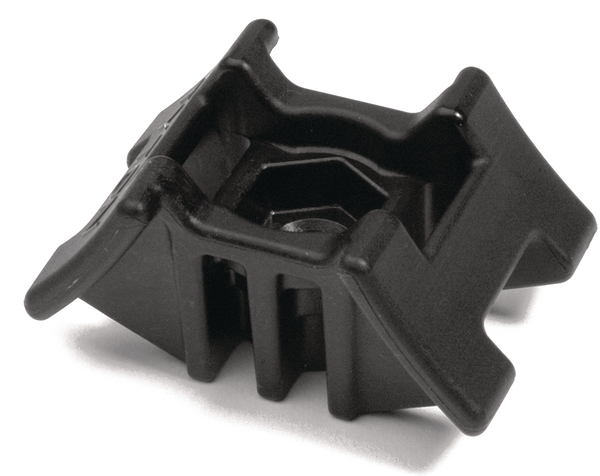

2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHSUV, Black, 500/pkg
Part No. 151-29403
| S2HM250HIRHSH1
|
Copied
- Separates bundles from wear and chafing, providing additional longevity.
- Hexagonal retention feature (S2HM25) captures a bolt or nut requiring tool access from the back side only.
- A socket counterbore allows securing with a socket wrench from the top side for use with a weld stud or bolt (S2CM25.)
- Made from impact modified, heat stabilized, UV resistant material making it ideal for heavy duty applications.
| Brand Family | S-Series |
| Color | Black (BK) |
| Description | HellermannTyton's saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the H-profile on the saddle mount provides a tight circumferential loop on large and small bundles. Cable ties up to 1/2" wide are used to secure the bundles. |
| Global Part Number | S2HM25-PA66HIRHSUV-BK |
| Part Number | S2HM250HIRHSH1 |
| Product Family | Heavy Duty Cable Tie Mounts |
| Product Subfamily | Mounts Secured with Mechanical Fasteners - Multiple Bundles |
| Short Description | 2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHSUV, Black, 500/pkg |
| Type | S2HM25 |
|
|
|
| Bundle Diameter Max. (imperial) | 3.5" |
| Bundle Diameter Max. (metric) | 89.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Fixation Method | Screw Mounting and Rivet |
| For Cable Tie Series | T50 - T250 |
| Height (imperial) | 0.90" |
| Height (metric) | 23.0mm |
| Height 2 (imperial) | 0.60" |
| Height 2 (metric) | 15.0mm |
| Length (imperial) | 1.80" |
| Length (metric) | 45.0mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width (metric) | 13.5mm |
| Mounting Hole Diameter (imperial) | 0.24 ", 0.25 " (HEXAGONAL) |
| Mounting Hole Diameter (metric) | 6.0 mm, 6.35 mm (hexagonal) |
| Mounting Hole Diameter Max. (imperial) | 0.25" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Round |
| Mounting Screw Type | 1/4" (M6) Screw |
| Stud Diameter (imperial) | 0.25" |
| Stud Diameter (metric) | 6.35 mm |
| Width (imperial) | 1.2" |
| Width (metric) | 30.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Torque Max. (kgf-cm) | 13Nm |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
