High Torque Double Mount, 4-Way, Mounting Hole .375", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 100/pkg
Art.-No. 151-02104
|
|
Copied
- Arched H-profile surface allows for broad surface contact with the bundle, minimizing pinching and crushing of the bundles.
- High torque metal bushing allows for strength in heavy duty applications.
- These mounts contain a small tab inside the mounting hole to temporarily engage the threads which allows assemblers to pre-install the mount on a stud with a washer and nut.
| Application |
The heavy duty mount, when used with a cable tie, eliminates the need to carry multiple sizes of fixed bundle diameter clamps, which reduces inventory and purchasing costs while simplifying the assembly process.
The heavy duty mount and cable tie combination makes it easy to service bundles in the field. Simply remove the cable tie, leave the mount in place, and replace the cable tie. The heavy duty mounts are designed for use with HellermannTyton’s heavy duty T250, T255, and wide strap cable ties to harness wires and hoses; however, they accept all standard cable ties up to .5" wide . |
| Color | Black (BK) |
| Description | High Torque Double Mounts are designed for use with power assisted impact wrenches and are molded with a metal bushing to withstand the forces required to tighten grade 8 bolts. Mounts are designed for routing multiple bundles with HellermannTyton heavy duty T250, T255, and wide strap cable ties to harness wires and hoses. The bundle is secured directly over the mounting fastener. The arched saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bundles. Mounts accept all standard cable ties up to .5" wide. |
| Global Part Number | HDM375BDM4W-R-PA66HIRHSUV-BK |
| Key product features | vibration absorbing, for multiple routing |
| Packaging Type | pack |
| Part No. | 151-02104 |
| Product Subfamily | Mounts Secured with Mechanical Fasteners - Multiple Bundles |
| Product family | Cable Tie Mounts |
| Short Description | High Torque Double Mount, 4-Way, Mounting Hole .375", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 100/pkg |
| Type | HDM375BDM4W-R |
| UV Resistant | Yes |
|
|
|
| Fixation Method | Screw Mounting and Rivet |
| For Cable Tie Series | T50 - T250 |
| Height (imperial) | 0.99" |
| Height (metric) | 25.2mm |

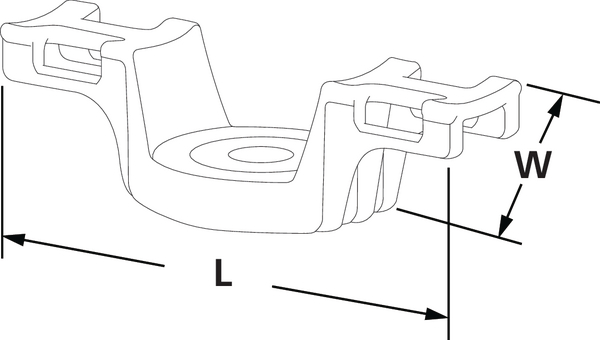

| Length (imperial) | 3.50" |
| Length (metric) | 89.0mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width (metric) | 12.7mm |
| Mounting Hole Centers (imperial) | 0.405" |
| Mounting Hole Diameter (imperial) | 0.405 " |
| Mounting Hole Diameter (metric) | 10.29 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | 3/8" (M10) Screw |
| Stud Diameter (imperial) | 0.41" |
| Stud Diameter (metric) | 10.3 mm |
| Width (imperial) | 1.4" |
| Width (metric) | 34.1mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Torque Max. (kgf-cm) | 154.6Nm |
| Torque Max. (lbf-ft) | 114.0lbf-ft |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
