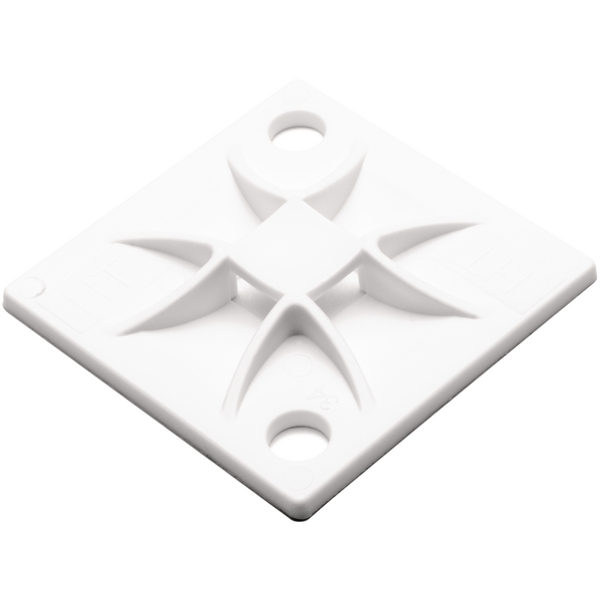

Q Mount, 0.16" Hole Dia, 1.2" x 1.2" x 0.21", 4 way entry for Q18–Q50 ties, PA66, White, 100/bg

Part No. 151-10902

|

Q-Series mounting bases are designed to work exclusively with the Q-Tie® cable tie series.

Q-mount QM, 4-way entry, self adhesive, screwable.

1. Insert tail into lock head and push tail partly in the head.

2. To release the tie push the tail slightly out of the head.

2. Pull the tie through the head until the bundle is fixed. 3. Cut off the remaining part of the tie with an application tool.

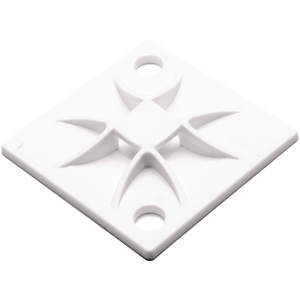

Secures with a single screw, providing quick installation.

Q-ties can be used for both temporary and final cable installation.

3. When installation is finished, Q-tie can be tightened and cut off - either manually or with an application tool.

The Q-mount base locks the Q-tie in vertical position, your hands are free to apply the cables.

2- or 4-way entry options for the Q-Tie, offering flexibility and stability
Designed for use with 18- through 120-pound cable ties to provide stability when securing bundles.
Secures with a single screw, providing quick installation.

Quantity:

Add to watchlist

Distributors near you

Downloads

Base Data

Brand Family	QM-Series
Color	Natural (NA)
Description	Q-Series mounting bases are designed to work exclusively with the Q-Tie® cable tie series. This mounting component can be secured with screws. The Q-Mount allows either a two- or four-way entry for the Q-Tie, providing a quick and simple insertion into the mount. Once in place, the Q-Tie will not slip out, even in vertical mounting applications.
Global Part Number	QM30-PA66-NA
Part Number	151-10902
Product Family	Screw Mount Cable Tie Bases
Short Description	Q Mount, 0.16" Hole Dia, 1.2" x 1.2" x 0.21", 4 way entry for Q18–Q50 ties, PA66, White, 100/bg
Type	QM30

Product Dimensions

Fixation Method	Screw Mounting
For Cable Tie Series	Q-Ties
Height (imperial)	0.18"
Height (metric)	4.5mm
Length (imperial)	1.2"
Length (metric)	30.0mm
Max. Cable Tie Width (imperial)	0.2"
Max. Cable Tie Width (metric)	5.1mm
Mounting Hole Centers (imperial)	0.83"
Mounting Hole Centers (metric)	21.0mm
Mounting Hole Diameter (imperial)	0.16 "
Mounting Hole Diameter (metric)	4.1 mm
Mounting Hole Diameter Min. (imperial)	0.16"
Mounting Screw Type	M4 Screw
Width (imperial)	1.2"
Width (metric)	30.0mm

Material and Specifications

Flammability	UL 94 V-2
Halogen Free	Yes
Hazardous Goods	No
Material	PA66
Material	Polyamide 6.6 (PA66)
Operating Temperature	-40°F to +185°F (-40°C to +85°C)
REACH Conformity	Yes
ROHS Compliant	Yes

Logistic and Packaging


GTIN-13 / EAN	4031026413716
Packaging 1 - Weight (kg)	0.14188kg
Packaging Type	bag
Pkg. Qty.	100
Pkg. Qty.	100Pieces
