Lashing Tie Mount, 0.73" x 1.5", 0.25" Screw, PA66HS, Black, 500/plain pkg
Part No. 151-00619
|
Copied
- The strap is parallel to the mount when inserted into the head, providing a mounting point for where the cable ties.
| Brand Family | LTM-Series |
| Color | Black (BK) |

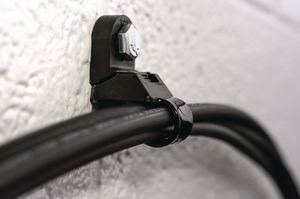

| Description | The lashing tie mount is designed to snap into the T250 lashing tie. The tie head is assembled perpendicular to the mount. The strap is parallel to the mount when inserted into the head. The lashing tie mount is recommended for indoor or outdoor wall mount cable applications. |
| Global Part Number | LTM250-PA66HS-BK |
| Part Number | 151-00619 |
| Product Family | Screw Mount Cable Tie Bases |
| Short Description | Lashing Tie Mount, 0.73" x 1.5", 0.25" Screw, PA66HS, Black, 500/plain pkg |
| Type | LTM250 |
| Bundle Diameter Max. (imperial) | 0" |
| Bundle Diameter Min. (imperial) | 0" |
| Fixation Method | Screw Mounting and Rivet |
| Height (imperial) | 0.38" |
| Height (metric) | 9.6mm |
| Length (imperial) | 1.5" |
| Length (metric) | 37.1mm |
| Max. Cable Tie Width (metric) | 12.5mm |
| Mounting Hole Diameter (imperial) | 0.26 " |
| Mounting Hole Diameter (metric) | 6.6 mm |
| Mounting Screw Type | 1/4" (M6) Screw |
| Width (imperial) | 0.73" |
| Width (metric) | 18.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Material | PA66HS |
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
| Product Keyword | fixing system, fastening system, mounting system, mounting base, mounts, base, socket, screw base, screw mounting base, screw mount, fixing plate, fastening plate, mounting plate, fixing base, fastening base, fixing mounting base, fastening mounting base, cable mounts, cable base, cable mounting base, retaining plate, tie mount, tie base, cable tie base, cable tie mounts, cable fixing, cable fastening, mounting-base |
