Lashing Tie Mount, 0.73 x 1.5", 0.25" Screw, PA66HS, Black, 100/pkg
Part No. 151-00358
| LTM2500C2
|
Copied
- The strap is parallel to the mount when inserted into the head, providing a fixed insertion point for the cable tie.
| Brand Family | LTM-Series |
| Color | Black (BK) |

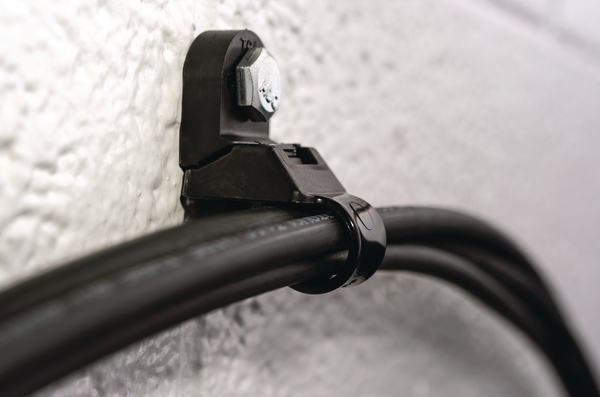

| Description | The lashing tie mount is designed to snap into the T250 lashing tie. The tie head is assembled perpendicular to the mount. The strap is parallel to the mount when inserted into the head. The lashing tie mount is recommended for indoor or outdoor wall mount cable applications. |
| Global Part Number | LTM250-PA66HS-BK |
| Part Number | LTM2500C2 |
| Product Family | Heavy Duty Cable Tie Mounts |
| Product Subfamily | Mounts Secured with Mechanical Fasteners - Single Bundle |
| Short Description | Lashing Tie Mount, 0.73 x 1.5", 0.25" Screw, PA66HS, Black, 100/pkg |
| Type | LTM250 |
|
|
|
| Fixation Method | Screw Mounting and Rivet |
| For Cable Tie Series | T250 |
| Height (imperial) | 0.38" |
| Height (metric) | 9.6mm |
| Length (imperial) | 1.5" |
| Length (metric) | 37.1mm |
| Max. Cable Tie Width (imperial) | 0.49" |
| Max. Cable Tie Width (metric) | 12.5mm |
| Mounting Hole Diameter (imperial) | 0.26 " |
| Mounting Hole Diameter (metric) | 6.6 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | 1/4" (M6) Screw |
| Width (imperial) | 0.73" |
| Width (metric) | 18.5mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Hazardous Goods | No |
| Material | PA66HS |
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
