Heavy Duty Hinge Clamp, 0.57 - 0.61" Bundle Dia., PA46, Black, 500/carton
Art.-No. 151-03618
|
|
Copied
- High-heat material can be used near engines and other sources of heat.
- Hinged design keeps two halves together and simplifies assembly.
- Secures with a single bolt or stud, providing quick installation.
| Color | Black (BK) |

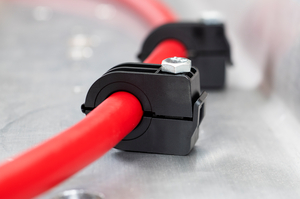

| Description | These clamps separate bundles and secure to any surface with an M6 bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. |
| PART DESCRIPTION | HDHC15mm-PA46-BK |
| Packaging Type | carton |
| Part No. | 151-03618 |
| Product Subfamily | Bundle Separation Clamps |
| Product family | Bundle Separators |
| Short Description | Heavy Duty Hinge Clamp, 0.57 - 0.61" Bundle Dia., PA46, Black, 500/carton |
| Type | HDHC15mm |
| UV Resistant | No |
| Bundle Diameter Max. (imperial) | 0.61" |
| Bundle Diameter Max. (metric) | 15.5mm |
| Bundle Diameter Min. (imperial) | 0.57" |
| Bundle Diameter Min. (metric) | 14.5mm |
| Height (imperial) | 1.20" |
| Height (metric) | 30.6mm |
| Length (imperial) | 1.92" |
| Length (metric) | 48.8mm |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | 6.0 mm |
| Width (imperial) | 0.59" |
| Width (metric) | 15.0mm |
