Heavy Duty Hinge Clamp, 0.49 - 0.53" Bundle Dia., PA46, Black, 500/carton
Part No. 151-03619
|
Copied
- High-heat material can be used near engines and other sources of heat.
- Hinged design keeps two halves together and simplifies assembly.
- Secures with a single bolt or stud, providing quick installation.
| Color | Black (BK) |

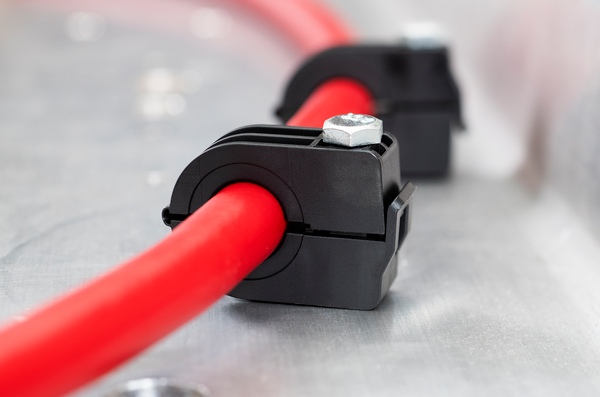

| Description | These clamps separate bundles and secure to any surface with an M6 bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. |
| Global Part Number | HDHC13mm-PA46-BK |
| Part Number | 151-03619 |
| Product Family | Bundle Separators |
| Product Subfamily | Bundle Separation Clamps |
| Short Description | Heavy Duty Hinge Clamp, 0.49 - 0.53" Bundle Dia., PA46, Black, 500/carton |
| Type | HDHC13mm |
| Bundle Diameter Max. (imperial) | 0.53149606245" |
| Bundle Diameter Max. (metric) | 13.5mm |
| Bundle Diameter Min. (imperial) | 0.49" |
| Bundle Diameter Min. (metric) | 12.5mm |
| Height (imperial) | 1.20" |
| Height (metric) | 30.6mm |
| Length (imperial) | 1.92" |
| Length (metric) | 48.8mm |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | 6.0 mm |
| Width (imperial) | 0.59" |
| Width (metric) | 15.0mm |
| CE Certification | No |
| CSA Certified | No |
| Hazardous Goods | No |
| Material | PA46 |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature | -40°F to +266°F (-40°C to +130°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
