Cradle Mount With Screw Attachment, 0.24" Cradle Area, M4 Screw Hole Dia, PA66HIRHS(REC), Black, 100/Pkg
Art.-No. 151-04304
|
|
Copied
- Made from our PA66HIRHS(REC) post-industrial recycled material, this product offers exceptional performance in a wide range of industries and applications.
- The ReSource family of products helps companies meet their sustainability goals.
- Temporarily holds wires along routing path until ready to make permanent.
- Built-in CutZone safety feature prevents damage to wires and cables.
- Unique EZ Feed slot maintains clear space to insert cable ties.
- Allows flexibility of frame size and mounting location with #8 (M4) screw into panel surface or with T-nut in frame.
Show more
Show less
| Color | Black (BK) |

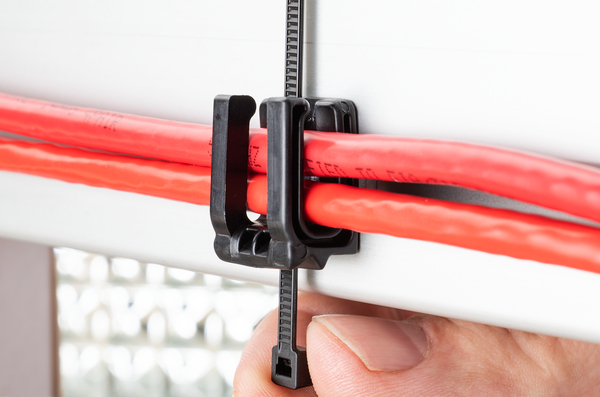

| Description | Part of our sustainable line of products, the ReSource product family features solutions made from post-industrial recycled material. It is impact resistant and heat stabilized for a range of operation environments and applications. This cradle mount mounts to a panel with a screw or goes onto a frame using a screw and T-nut. It is ideal for routing wires in industrial applications where rework and adjustments are common. Mount features a cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone prevents wire damage when cutting off cable ties. |
| PART DESCRIPTION | CTCM6CZS-PA66HIRHS(REC)-BK |
| Packaging Type | bag |
| Part No. | 151-04304 |
| Product Subfamily | Screw Mount Cable Tie Cradles |
| Product family | Cable Tie Mounts |
| Recyclate | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Short Description | Cradle Mount With Screw Attachment, 0.24" Cradle Area, M4 Screw Hole Dia, PA66HIRHS(REC), Black, 100/Pkg |
| Type | CTCM6CZS |
| UV Resistant | Yes |
| Cable Tie Thickness Max. (imperial) | 0.13" |
| Cable Tie Thickness Max. (metric) | 3.25mm |
| Fixation Method | Screw Mounting and Rivet |
| For Cable Tie Series | T18 - T120 |

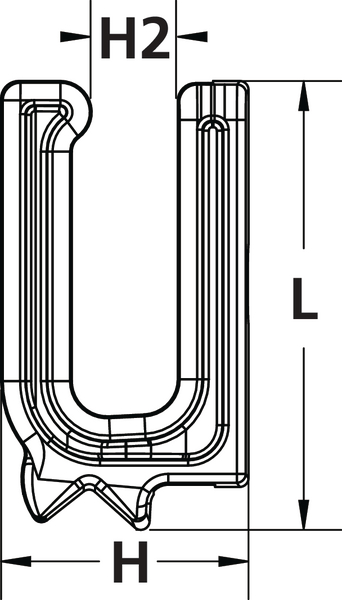

| Height (imperial) | 0.55" |
| Height (metric) | 14.0mm |
| Height 2 (imperial) | 0.24" |
| Height 2 (metric) | 6.0mm |
| Length (imperial) | 1.0" |
| Length (metric) | 25.4mm |
| Length 2 (imperial) | 0.75" |
| Length 2 (metric) | 19.0mm |
| Max. Cable Tie Width (imperial) | 0.36" |
| Max. Cable Tie Width (metric) | 9.07mm |
| Mounting Hole Diameter (imperial) | 0.18 " |
| Mounting Hole Diameter (metric) | 4.5 mm |
| Mounting Screw Type | #8 (M4) Screw |
| Width (imperial) | 0.76" |
| Width (metric) | 19.3mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHS(REC) |
| Material | Polyamide 6.6 recycled, high impact modified, heat stabilized (PA66HIRHS(REC)) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
