Cradle Mount With Frame Attachment, 0.24" Cradle Area, 0.7 x 0.31" Frame Mount, PA66HIRHS(REC), Black, 100/Pkg
Art.-No. 151-04302
|
|
Copied
- Made from our PA66HIRHS(REC100) post-industrial recycled material, this product offers exceptional performance in a wide range of industries and applications.
- The ReSource family of products helps companies meet their sustainability goals.
- Temporarily holds wires along routing path until ready to make permanent.
- Built-in CutZone safety feature prevents damage to wires and cables.
- Unique EZ Feed slot maintains clear space to insert cable ties.
- Frame mount allows for simple quarter-turn mounting into 80/20, 40- or 15-Series aluminum frames.
Show more
Show less
| Application | Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles. |
| Color | Black (BK) |

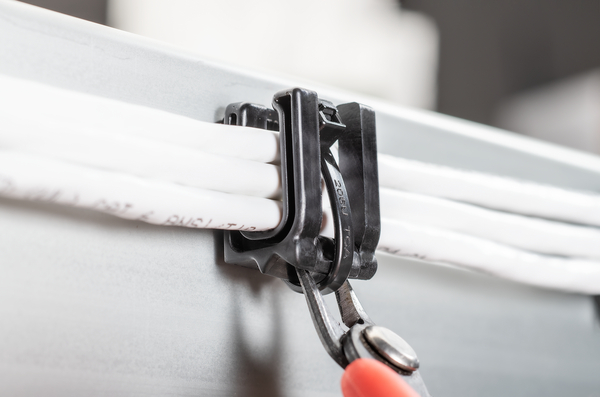

| Description | Part of our sustainable line of products, the ReSource product family features solutions made from post-industrial recycled material. It is impact resistant and heat stabilized for a range of operation environments and applications. This cradle mount with frame attachment can be twisted into industrial frames with a 0.7 x 0.31" frame mount and is ideal for routing wires in industrial applications where rework and adjustments are common. Mount features a 0.24" cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone prevents wire damage when cutting off cable ties. |
| PART DESCRIPTION | CTCM6CZF-PA66HIRHS(REC)-BK |
| Packaging Type | bag |
| Part No. | 151-04302 |
| Product Subfamily | Aluminum Frame Cable Tie Mounts |
| Product family | Cable Tie Mounts |
| Recyclate | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Short Description | Cradle Mount With Frame Attachment, 0.24" Cradle Area, 0.7 x 0.31" Frame Mount, PA66HIRHS(REC), Black, 100/Pkg |
| Type | CTCM6CZF |
| UV Resistant | Yes |
| Cable Tie Thickness Max. (imperial) | 0.13" |
| Cable Tie Thickness Max. (metric) | 3.25mm |
| Fixation Method | 80/20 Frame |
| For Cable Tie Series | T18 - T120 |
| Height (imperial) | 0.55" |
| Height (metric) | 14.0mm |
| Height 2 (imperial) | 0.24" |
| Height 2 (metric) | 6.0mm |
| Length (imperial) | 1.0" |
| Length (metric) | 25.4mm |
| Length 2 (imperial) | 0.75" |
| Length 2 (metric) | 19.0mm |
| Max. Cable Tie Width (imperial) | 0.36" |
| Max. Cable Tie Width (metric) | 9.07mm |
| Panel Thickness (imperial) | 0.31" |
| Panel Thickness (metric) | 8.0mm |
| Width (imperial) | 0.76" |
| Width (metric) | 19.3mm |
| Width 2 (imperial) | 0.32" |
| Width 2 (metric) | 8.0mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHS(REC) |
| Material | Polyamide 6.6 recycled, high impact modified, heat stabilized (PA66HIRHS(REC)) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
