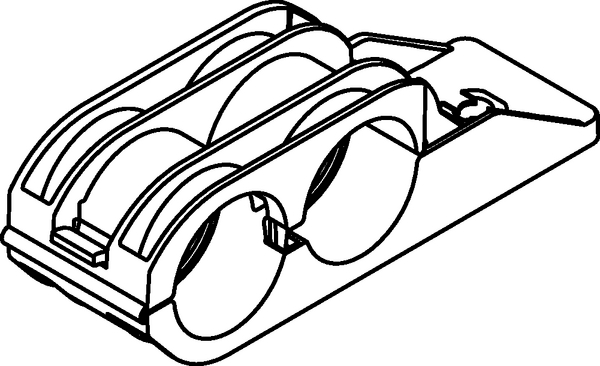

HV Dual Clamp with Oval M6 Mount, 0.94" Bundle Dia, PA66HIRHSUV, 250/ctn
Art.-No. 151-04378
|
|
Copied
- Bolt-down, one-piece design to bundle and secure two HV cables with convolute.
- Integrated M6 Stud Mount to act as third hand for retention.
- Compression limiter for high torque bolted applications.
- Releasable latch for serviceability.
| Color | Black (BK) |
| Description | These clamps separate multiple bundles and secure them to any surface with a 6 mm stud or bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. The robust design and durable materials also make it ideal for heavy duty applications. |
| Key product features | vibration absorbing, sealed, for multiple routing |
| PART DESCRIPTION | DHVC24OVALCL-PA66HIRHSUV-BK |
| Packaging Type | bag |
| Part No. | 151-04378 |
| Product Subfamily | Bundle Separation Clamps |
| Product family | Bundle Separators |
| Short Description | HV Dual Clamp with Oval M6 Mount, 0.94" Bundle Dia, PA66HIRHSUV, 250/ctn |
| Type | DHVC24OVALCL |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.94" |
| Bundle Diameter Max. (metric) | 24.0mm |
| Bundle Quantity | 2 |
| Fixation Method | Stud Mount |
| Height (imperial) | 1.10" |
| Height (metric) | 28.15mm |
| Height 2 (imperial) | 1.26" |
| Height 2 (metric) | 32.0mm |
| Length (imperial) | 6.88" |
| Length (metric) | 174.7mm |
| Length 2 (imperial) | 3.96" |
| Length 2 (metric) | 100.5mm |
| Mounting Hole Diameter (metric) | M6 |
| Width (imperial) | 1.2" |
| Width (metric) | 30.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
