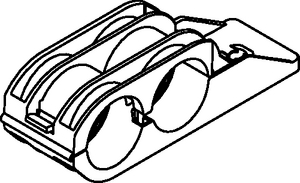

HV Dual Clamp with M6 Stud Mount, 0.94" Bundle Dia, PA66HIRHSUV, Black, 250/ctn
Part No. 151-03905
|
Copied

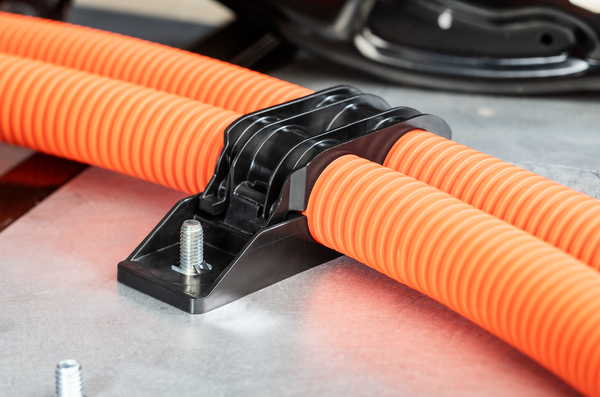

- Bolt-down, one-piece design can bundle and secure two high-voltage cables inside convoluted tubing.
- Integrated M6 Stud Mount acts as third hand for retention while attaching.
- Compression limiter for high-torque bolted applications.
- Releasable latch for serviceability.
| Color | Black (BK) |
| Description | These clamps separate multiple bundles and secure them to any surface with a 6 mm stud or bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. The robust design and durable materials also make it ideal for heavy duty applications. |
| Global Part Number | DHVC24M6-PA66HIRHSUV-BK |
| Part Number | 151-03905 |
| Product Family | Bundle Separators |
| Product Subfamily | Bundle Separation Clamps with Mount |
| Short Description | HV Dual Clamp with M6 Stud Mount, 0.94" Bundle Dia, PA66HIRHSUV, Black, 250/ctn |
| Type | DHVC24M6 |
| Bundle Diameter First Hole Max. (imperial) | 0.94" |
| Bundle Diameter First Hole Max. (metric) | 24.0mm |
| Bundle Diameter Max. (imperial) | 0.94" |
| Bundle Diameter Max. (metric) | 24.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Bundle Diameter Second Hole Max. (imperial) | 0.94" |
| Bundle Diameter Second Hole Max. (metric) | 24.0mm |
| Bundle Quantity | 2 |
| Fixation Method | Stud Mount |
| Height (imperial) | 1.26" |
| Height (metric) | 32.0mm |
| Length (imperial) | 3.96" |
| Length (metric) | 100.5mm |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | M6 |
| Width (imperial) | 1.20" |
| Width (metric) | 30.5mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
