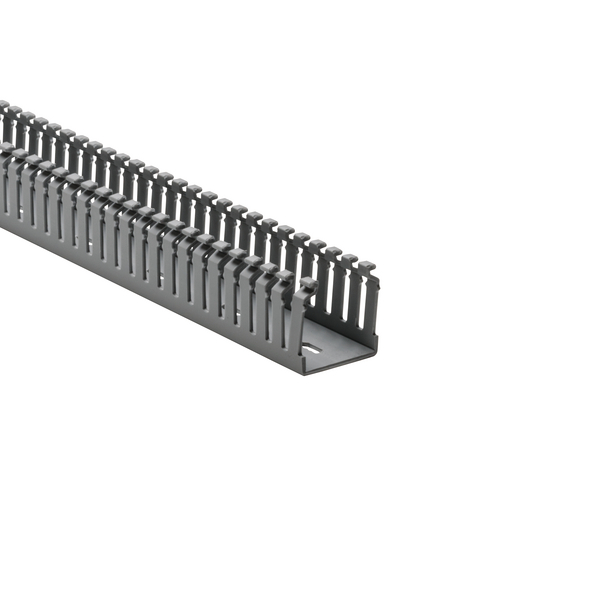

High Density Slotted Wall Wiring Duct, 1.5 x 1.5", Adhesive, PVC, Gray, 120ft/Carton
Art.-No. 184-15151
|
|
Copied
- Narrow fingers reduce fanning of wires to terminal blocks, providing a neater appearance.
- Each finger features a double restriction to hold wires in the bottom portion of the duct, simplifying installation.
- Mounting holes are uniform in size to those in slotted and solid wall duct but are provided every two inches to accommodate compact designs and provide ease of installation.

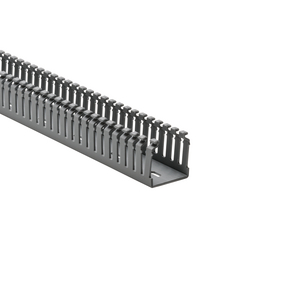

- Nonpermanent adhesive allows repositioning prior to final installation.
| Color | Gray (GY) |
| Description | HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated. |
| PART DESCRIPTION | SLHDA1.5X1.5-PVC-GY |
| Packaging Type | carton |
| Part No. | 184-15151 |
| Product Subfamily | High Density Wiring Duct - Narrow Slot with Adhesive |
| Product family | Slotted Wall Wiring Duct |
| Short Description | High Density Slotted Wall Wiring Duct, 1.5 x 1.5", Adhesive, PVC, Gray, 120ft/Carton |
| Technical Description | Adhesive |
| Type | SLHDA1.5X1.5 |
| UV Resistant | No |
| Fixation Method | Adhesive |
| Height (imperial) | 1.57" |
| Height (metric) | 39.9mm |
| Length (imperial) | 6.0ft |
| Length (metric) | 1.83m |
| Mounting Hole Centers (imperial) | 2.0" |
| Mounting Hole Centers (metric) | 50.8mm |
| Width (imperial) | 1.5" |
| Width (metric) | 38.1mm |
| Width 2 (imperial) | 1.5" |
| Width 2 (metric) | 38.1mm |
| Width 3 (imperial) | 0.16" |
| Width 3 (metric) | 4.1mm |
| Width 4 (imperial) | 0.4" |
| Width 4 (metric) | 10.2mm |
| Width 5 (imperial) | 1.2" |
| Width 5 (metric) | 30.5mm |
| CE Certification | Yes |
| CSA Certified | Yes |
| Halogen Free | No |
| Material | PVC |
| Material | Polyvinylchloride (PVC) |
| Operating Temperature | +122°F (+50°C) |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL File Number [Logo] | E64139 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
