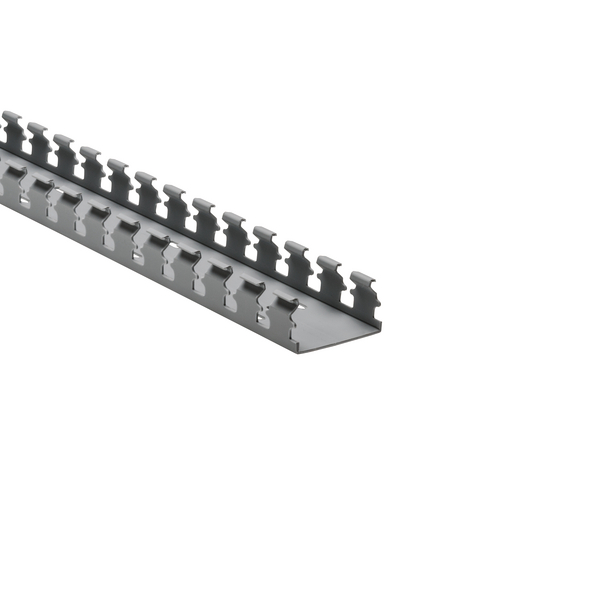

Slotted Wall Wiring Duct, 2 x 1", Non-Adhesive, 7 ft Long, PVC, Gray, 140 ft/Carton
Art.-No. 904-00244
|
|
Copied
- Strong fingers prevent unintended breaking.
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
- Restricted opening design in the finger of the duct helps keep wires in place, preventing unintended removal and permitting individual wires to be traced without disconnection.
| Color | Gray (GY) |
| Description | Slotted Wall Wiring Duct features break-away fingers that provide easy access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s. |
| PART DESCRIPTION | SL2X1-PVC-GY |
| Packaging Type | pack |
| Part No. | 904-00244 |
| Product Subfamily | Slotted Wall Wiring Duct - Wide Slot |
| Product family | Slotted Wall Wiring Duct |
| Short Description | Slotted Wall Wiring Duct, 2 x 1", Non-Adhesive, 7 ft Long, PVC, Gray, 140 ft/Carton |
| Type | SL2X1 |
| Fixation Method | Non-Adhesive |
| Height (imperial) | 1.06" |
| Height (metric) | 26.9mm |
| Length (imperial) | 7.0ft |
| Length (metric) | 2.13m |
| Mounting Hole Centers (imperial) | 4.0" |
| Mounting Hole Centers (metric) | 101.6mm |
| Width (imperial) | 2.0" |
| Width (metric) | 50.8mm |
| Width 2 (imperial) | 2.0" |
| Width 2 (metric) | 50.8mm |
| Width 3 (imperial) | 0.4" |
| Width 3 (metric) | 10.2mm |
| Width 4 (imperial) | 1.0" |
| Width 4 (metric) | 25.4mm |
| Width 5 (imperial) | 0.75" |
| Width 5 (metric) | 19.1mm |
| CE Certification | Yes |
| CSA Certified | Yes |
| Flammability | UL 94 V-0 |
| Halogen Free | No |
| Material | PVC |
| Material | Polyvinylchloride (PVC) |
| Operating Temperature | +122°F (+50°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL File Number [Logo] | E64139 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
