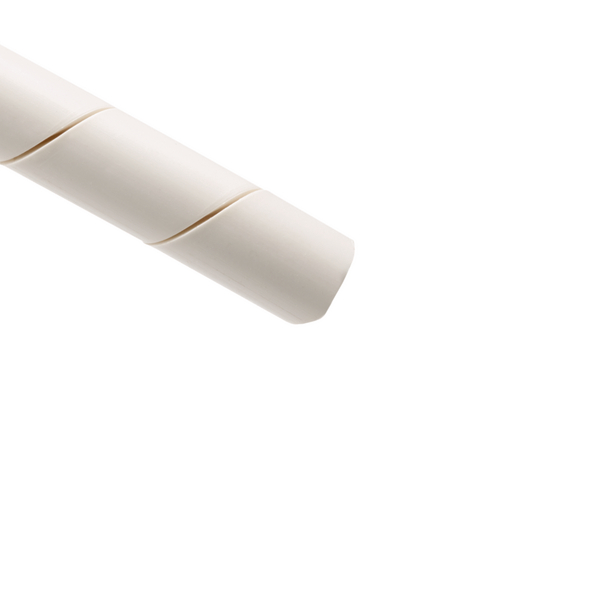

Spiralwrap Protective Sheathing, 0.38" Diameter, PE-FR, Natural, 100 ft/roll
Part No. 161-05017
| 2.5FRP9C
|
Copied
This product is not available anymore.
- Sheathing allows flexible routing and lead-out of cables
- The inner edges are beveled preventing damage to cables
- Sheathing is reusable and resistant to most chemicals
- Spiralwrap is U.L. Recognized
| Color | Natural (NA) |
| Description | HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize. |
| PART DESCRIPTION | 2.5FRP-PE-FR-NA |
| Packaging Type | pack |
| Part No. | 2.5FRP9C |
| Product Subfamily | FRP-Series |
| Short Description | Spiralwrap Protective Sheathing, 0.38" Diameter, PE-FR, Natural, 100 ft/roll |
| Type | 2.5FRP |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 3" |
| Bundle Diameter Max. (metric) | 76.2mm |
| Bundle Diameter Min. (imperial) | 0.31" |
| Bundle Diameter Min. (metric) | 7.92mm |
| Diameter (imperial) | 0.375" |
| Diameter (metric) | 9.53mm |
| Length (imperial) | 100.0ft |
| Length (metric) | 30.48m |
| Nominal Diameter (imperial) | 0.38" |
| Nominal Diameter (metric) | 9.53mm |
| Pitch (imperial) | 0.438" |
| Pitch (metric) | 11.13mm |
| Reel Length (imperial) | 100.0ft |
| Trade Size | 3/8 " |
| Wall Thickness (imperial) | .052" |
| Wall Thickness (metric) | 0.81mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | No |
| Material | PE-FR |
| Material | Polyethylene, flame retardant (PE-FR) |
| Operating Temperature | -4°F to +176°F (-20°C to +80°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E147924 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
