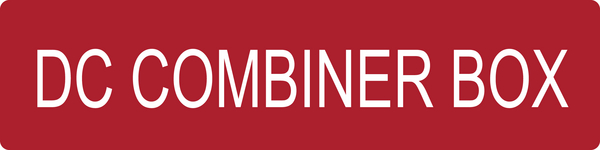

Solar Label, DC COMBINER BOX, 4.0 x 1.0", VL, Red, 50/roll
Part No. 596-00740
|
Copied
- Made with UV stable inks and materials for durability and weather resistance.
- The labels are supplied with aggressive adhesive to ensure long life.
- Solar Installation labels meet NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
| Color | Red (RD) |
| Global Part Number | DCCB-443/281-RD |
| Part Number | 596-00740 |
| Product Family | Labels and Tags |
| Product Subfamily | Solar Identification |
| Short Description | Solar Label, DC COMBINER BOX, 4.0 x 1.0", VL, Red, 50/roll |
| Technical Description | Pre-Printed Solar Label, 4" X 1", DC Combiner Box, Vinyl, Red, 50/RL |
| Type | DCCB |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | 443/281 |
| Material | Type 443/281, UV stabilized, flexible white vinyl with clear polyester laminate (443/281) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | MH11410 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UV Resistant | No |
| Warranty | Yes |
