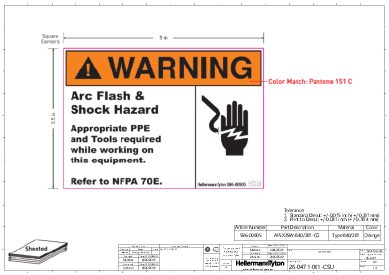

Arc Flash Label, WARNING ARC FLASH AND SHOCK HAZARD, 5.0 x 3.75", PET, Orange/White, 10/pkg
Art.-No. 596-00905
|
|
Copied
- Made with UV-stable inks and materials for durability and weather resistance.
- Polyester is resistant to chemicals and solvents and will remain legible in dirty environments.
- High abrasion and scuff resistance for high-performance labeling.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
| Color | Orange (OG) |
| Description | HellermannTyton makes it easier than ever for solar installers to meet PV labeling codes. Solar Label Convenience Packs allow installers to quickly and economically purchase high quality preprinted NEC code-compliant solar installation labels. Packaged in 10-count quantities to meet the needs of smaller scale solar installations and independent contractors, Solar Label Convenience Packs are available in HellermannTyton’s most popular preprinted NEC code-compliant solar label formats. Each Solar Label Convenience Pack contains 10 solar installation labels. Choose from a variety of regular and reflective preprinted labels. For enhanced durability, clear laminate overlay labels are also available in a convenience pack. |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| PART DESCRIPTION | AF5X35W-840/281-OG |
| Packaging Type | pack |
| Part No. | 596-00905 |
| Print Color | Black (BK) |
| Product Subfamily | Solar Identification |
| Product family | Labels and Tags |
| Short Description | Arc Flash Label, WARNING ARC FLASH AND SHOCK HAZARD, 5.0 x 3.75", PET, Orange/White, 10/pkg |
| Technical Description | Arc Flash Label, Warning- Arc Flash and Shock Hazard, 5.0" X 3.75",Orange/White |
| Type | AF5X35W |
| UV Resistant | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| Material | 840/281 |
| Material | Type 840/281, Polyester, UV-stabilized, clear polyester laminate (840/281) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | MH11410 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| Warranty | Yes |
