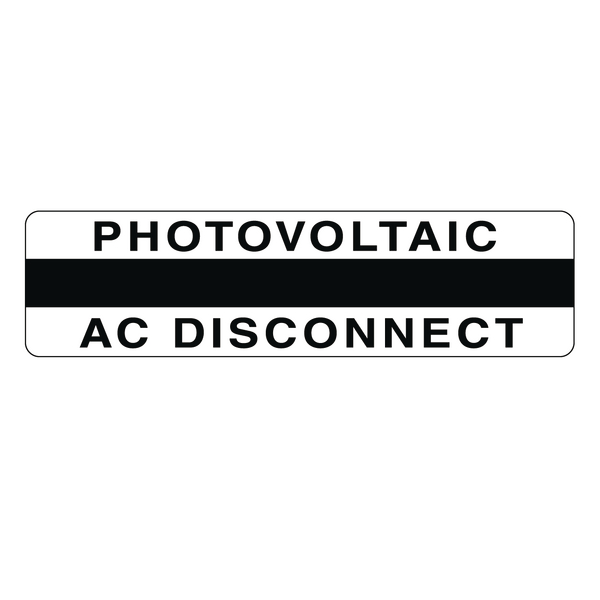

Metal Solar Placard, Engravable, PHOTOVOLTAIC AC DISCONNECT, 3.75"x1.0", AA, Black, 5/pkg
Art.-No. 596-00857
|
|
Copied
This product is not available anymore.
- Placards made with UV stable inks and materials tested to last up to 25 years, even in direct sun exposure
- Aggressive adhesive ensures strong bond, even on powder coated surfaces
- Meets or exceeds NEC & IFC standards for printed text, character height, color and outdoor UV stability
- Optional Paint Shields provide additional protection for pre-printed and variable data placards
| Color | Black (BK) |
| Description | Variable data placards are used to mark areas specific to the individual installation, like voltage data. Made of the same durable material as pre-printed metal solar placards, HellermannTyton offers two styles of variable placards: hand-writable and engravable. Both hand-writable placards feature a silver variable data area that can be marked using an industrial paint pen. Engravable placards have a black area that can be engraved using standard engraving equipment. |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| PART DESCRIPTION | ACDISCTM5ENG-AA-BK |
| Packaging Type | pack |
| Part No. | 596-00857 |
| Short Description | Metal Solar Placard, Engravable, PHOTOVOLTAIC AC DISCONNECT, 3.75"x1.0", AA, Black, 5/pkg |
| Technical Description | 3.75" X 1" Black text on aluminum background that reads as: "PHOTOVOLTAIC AC DISCONNECT." - 10 per pack. Nameplate can be used with standard engraving equipment to add variable data. |
| Type | ACDISCTM5ENG |
| UV Resistant | No |
| Adhesive | Ultra High Bond Permanent Acrylic Adhesive |
| Adhesive Operating Temperature | from +50°F (from +10°C) |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | AA |
| Material | Anodized Aluminum (AA) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +203°F (-40°C to +95°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Warranty | Yes |
