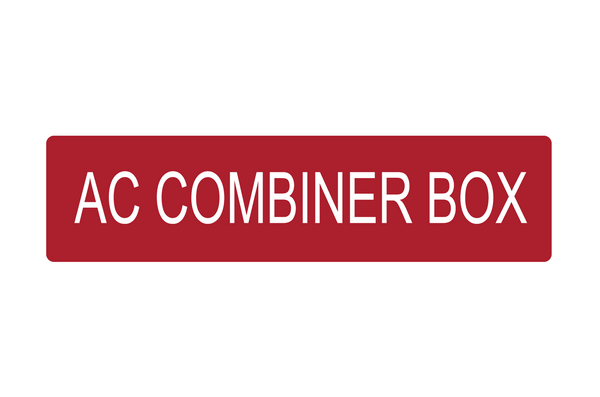

Solar Label, AC COMBINER BOX, 4.0" x 1.0", VL, Red, 10/pkg
Part No. 596-00758
|
Copied
This product is not available anymore.
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
| Color | Red (RD) |
| Description |
HellermannTyton makes it easier than ever for solar installers to meet PV labeling codes. Solar Label Convenience Packs allow installers to quickly and economically purchase high quality preprinted NEC 2014 and 2017 code-compliant solar installation labels. Packaged in 10-count quantities to meet the needs of smaller scale solar installations and independent contractors, Solar Label Convenience Packs are available in HellermannTyton’s most popular preprinted NEC 2014 and 2017 code-compliant solar label formats. Each Solar Label Convenience Pack contains 10 solar installation labels. Choose from a variety of regular and reflective preprinted labels. For enhanced durability, clear laminate overlay labels are also available in a convenience pack. |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| PART DESCRIPTION | ACCB10-443/281-RD |
| Packaging Type | pack |
| Part No. | 596-00758 |
| Product Subfamily | AC-Series |
| Short Description | Solar Label, AC COMBINER BOX, 4.0" x 1.0", VL, Red, 10/pkg |
| Technical Description | Pre-Printed Solar Label,4" X 1", AC Combiner Box, Vinyl, Red, 10/PK |
| Type | ACCB10 |
| UV Resistant | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | 443/281 |
| Material | Type 443/281, UV stabilized, flexible white vinyl with clear polyester laminate (443/281) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | MH16736 [RU], MH14382 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| Warranty | Yes |
