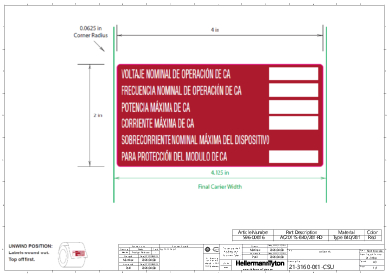

Solar Label, Printable, Spanish, AC Module, 4.0 x 2.0", PET, Red, 50/roll
Art.-No. 596-00816
|
|
Copied
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC® code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
| Application | For use on AC Disconnect. Voltage data can be printed using a thermal transfer printer. |
| Color | Red (RD) |
| Description |
Designed with cross-laminated UV stable materials, these variable print Solar Installation Labels are designed to accept printing from any standard thermal transfer printer using a resin-based ink ribbon for the best durability. Print your voltage information directly on the label and then laminate with an optional clear acrylic laminate material for added protection. These labels can be used to print disconnecting means and breaker series directly on the labels for a more professional result and a smoother inspection process. |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| PART DESCRIPTION | AC2011S-840/281-RD |
| Packaging Type | pack |
| Part No. | 596-00816 |
| Print Color | White (WH) |
| Print Method | thermal transfer |
| Product Subfamily | Solar Identification |
| Product family | Labels and Tags |
| Short Description | Solar Label, Printable, Spanish, AC Module, 4.0 x 2.0", PET, Red, 50/roll |
| Technical Description | Printable Solar Label, Spanish Version, AC MODULE LABEL, 4.0" X 2.0", Red |
| Type | AC2011S |
| UV Resistant | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | Yes |
| Halogen Free | Yes |
| Material | 840/281 |
| Material | Type 840/281, Polyester, UV-stabilized, clear polyester laminate (840/281) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | MH16736 [RU], MH14382 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
