Metal Solar Placard, Hand Writable, AC Module, 4.0" x 2.0", AA, Black, 5/pkg
Art.-No. 596-00840
|
|
Copied
This product is not available anymore.
- Placards made with UV stable inks and materials tested to last up to 25 years, even in direct sun exposure.
- Aggressive adhesive ensures strong bond, even on powder coated surfaces.
- Meets or exceeds NEC & IFC standards for printed text, character height, color and outdoor UV stability.
- Optional Paint Shields provide additional protection for pre-printed and variable data placards.
| Color | Black (BK) |
| Description | Variable data placards are used to mark areas specific to the individual installation, like voltage data. Made of the same durable material as pre-printed metal solar placards, hand-writable placards are designed to meet industry codes. Hand-writable placards feature a silver variable data area that can be marked using an industrial paint pen. |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| PART DESCRIPTION | AC2011M5-AA-BK |
| Packaging Type | pack |
| Part No. | 596-00840 |
| Short Description | Metal Solar Placard, Hand Writable, AC Module, 4.0" x 2.0", AA, Black, 5/pkg |

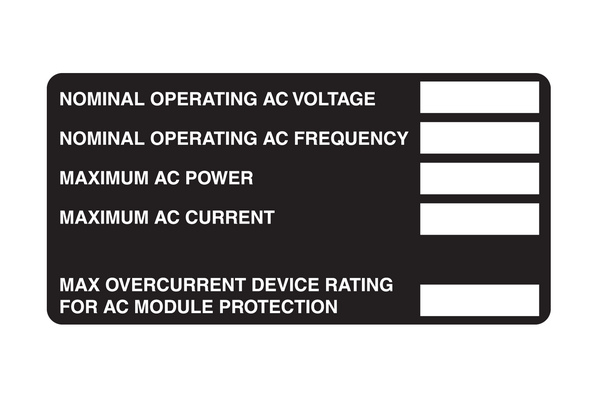

| Technical Description | 4" X 2" Silver Aluminum text on black background that reads as: "NOMINAL AC VOLTAGE;NOMINAL OPERATING AC FREQUENCY;MAXIMUM AC POWER;MAXIMUM AC CURRENT;MAXIMUM OVERCURRENT DEVICE RATING FOR AC MODULE PROTECTION." 10 per pack. Nameplate is also printable using a paint pen to add the variable voltage information on demand. |
| Type | AC2011M5 |
| Adhesive | Ultra High Bond Permanent Acrylic Adhesive |
| Adhesive Operating Temperature | from +50°F (from +10°C) |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | AA |
| Material | Anodized Aluminum (AA) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +203°F (-40°C to +95°C) |
| Pre-Printed | Yes |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Warranty | Yes |
