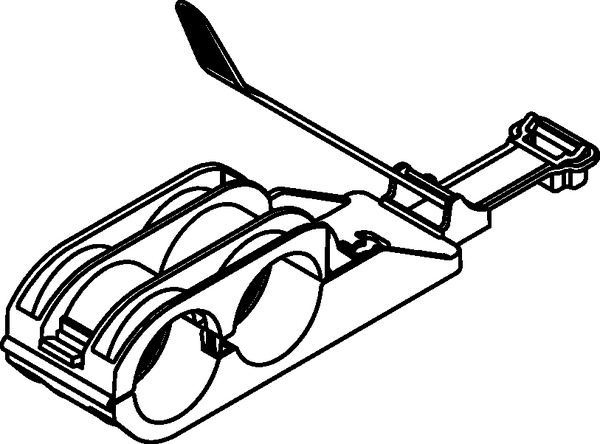

2-Piece P-Clamp, Dual Routing, M6 Mount, Assembled Wide Strap, 0.98" Max Dia, PA66HRHSUV, Black, 250/ctn
Part No. 156-03194
|
Copied
- Bolt-down, one-piece design can bundle and secure two high-voltage cables inside convoluted tubing.
- Saddle with wide strap tie for third routing option.
- Integrated M6 Stud Mount acts as third hand for retention while attaching.
| Color | Black (BK) |
| Description | This two-piece locking clamp and wide strap tie assembly replaces an expensive four-piece solution consisting of a metal bracket, EPDM isolator, tie and stud retainer. The wide strap cable tie offers a third bundle routing option. |
| Global Part Number | WSSDHVC24M6SD-PA66HIRHSUV-BK |
| Part Number | 156-03194 |
| Product Family | Bundle Separators |
| Product Subfamily | Bundle Separation Clamps with Mount |
| Short Description | 2-Piece P-Clamp, Dual Routing, M6 Mount, Assembled Wide Strap, 0.98" Max Dia, PA66HRHSUV, Black, 250/ctn |
| Type | WSSDHVC24M6SD |
| Bundle Diameter First Hole Max. (imperial) | 0.98" |
| Bundle Diameter First Hole Max. (metric) | 25.0mm |
| Bundle Diameter Max. (imperial) | 0.9842519675" |
| Bundle Diameter Max. (metric) | 25.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Bundle Diameter Second Hole Max. (imperial) | 0.98" |
| Bundle Diameter Second Hole Max. (metric) | 25.0mm |
| Fixation Method | Stud Mount |
| Height (imperial) | 1.24" |
| Height (metric) | 31.5mm |
| Identification Plate Position | none |
| Length (imperial) | 4.48" |
| Length (metric) | 113.9mm |
| Length 2 (imperial) | 7.40" |
| Length 2 (metric) | 188.0mm |
| Length 3 (imperial) | 0.36" |
| Length 3 (metric) | 9.1mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | M6 x 1 |
| Mounting Hole Shape | Round |
| Width (imperial) | 1.20" |
| Width (metric) | 30.5mm |
| Affixing Part Material | PA66HIRHSUV |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Foot Part Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
