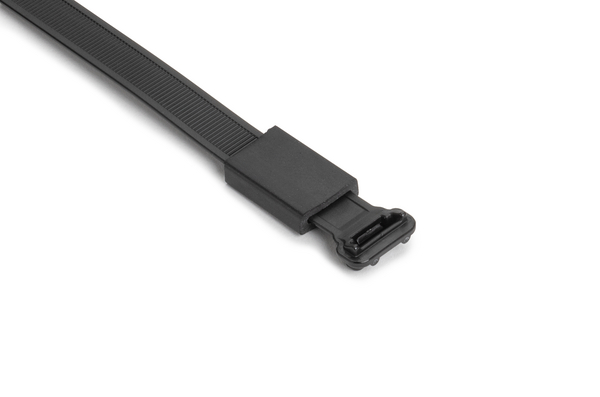

Wide Strap Tie with Rubber Sleeve, 15.1" Long, 0.59 - 4.12" Dia, 120lbs, PA66HIRHSUV, Black, 300/bag
Part No. 156-03742
|
|
Copied
- Wide strap ties with rubber sleeving minimize pinching and provide extra protection for sensitive harneses, soft hoses, and convoluted tubing.
- The rubber sleeving inhibits lateral movements on the bundle, especially on smooth tubing.
| Color | Black (BK) |
| Description | Wide strap cable ties with a rubber sleeve are designed for the flexible and easy bundling and fastening of smooth and sensitive bundles. |
| Global Part Number | WSRNEP25MM-PA66HIRHSUV/CR-BK |
| Packaging Type | pack |
| Part No. | 156-03742 |
| Product family | 2-Piece Tie Assemblies |
| Short Description | Wide Strap Tie with Rubber Sleeve, 15.1" Long, 0.59 - 4.12" Dia, 120lbs, PA66HIRHSUV, Black, 300/bag |
| Type | WSRNEP25MM |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 4.125" |
| Bundle Diameter Max. (metric) | 105mm |
| Bundle Diameter Min. (imperial) | 0.59" |
| Bundle Diameter Min. (metric) | 15.0mm |
| Identification Plate Position | none |
| Length (imperial) | 12.06" |
| Length (metric) | 306.4mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Releasable Closure | Yes |
| Thickness (imperial) | 0.055" |
| Thickness (metric) | 1.4mm |
| Width (imperial) | 0.71" |
| Width (metric) | 18.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, CR |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Chloroprene Rubber (CR) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
