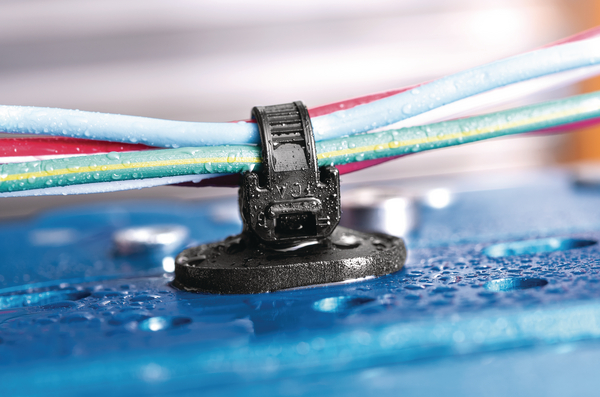

1-Piece Cable Tie with Oval Arrowhead Mount with Seal, 6.2" Long, Mounting Hole Diameter 0.24 x 0.48", PA66HS, Black, 500/pkg
Art.-No. 126-00080
|
|
Copied
- Design helps silence and stabilize the tie in high-vibration applications.
- Arrowhead-style mount provides low insertion and high extraction force.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- Rubber seal restricts water and debris from passing through mounting hole.
| Application | With a diverse range of fixing possibilities (from 0.6mm to 2.0mm panel thickness) this range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building. |
| Color | Black (BK) |
| Description | Push Mount Ties with Seal for Oval Holes provide a one-piece bundling and mounting solution. The oval arrowhead fastener won’t rotate once inserted into a panel hole, ensuring proper routing of wires and hoses. The welded rubber seal protects against the ingress of water and debris. |
| Global Part Number | T60SOSSFT62x122-E-MD-PA66HS-BK |
| Key product features | sealed |
| Packaging Type | pack |
| Part No. | 126-00080 |
| Product Subfamily | Arrowhead Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 1-Piece Cable Tie with Oval Arrowhead Mount with Seal, 6.2" Long, Mounting Hole Diameter 0.24 x 0.48", PA66HS, Black, 500/pkg |
| Type | T60SOSSFT62x122-E-MD |
| UV Resistant | No |
| Bundle Diameter Max. (imperial) | 1.18" |
| Bundle Diameter Max. (metric) | 30.0mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.6mm |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (imperial) | 0.63 x 0.87" |
| Disc Diameter (metric) | 16.0 x 22.0mm |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Length (imperial) | 6.2" |
| Length (metric) | 157.5mm |
| Min. Tensile Strength (imperial) | 67lbs |
| Min. Tensile Strength (metric) | 300N |
| Mounting Hole Diameter (imperial) | 0.24 x 0.48 " |
| Mounting Hole Diameter (metric) | 6.2 x 12.2 mm |
| Mounting Hole Diameter Max. (imperial) | 0.48" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.08" |
| Panel Thickness (metric) | 0.6 - 2.0mm |
| Panel Thickness Max. (Imperial) | 0.08" |
| Panel Thickness Max. (Metric) | 2.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Releasable Closure | No |
| Thickness (metric) | 1.35mm |
| Width (imperial) | 0.22" |
| Width (metric) | 5.5mm |
