Offset M5/T5/M6 Stud Mount Tie, B-Series, 8.8" L, 50 lb Tensile Strength, PA66HIRHSUV, Blk, 2000/carton
Part No. 157-04147
|
Copied
- One-piece design eliminates the need for multiple components, saving you time and hassle.
- Downward tie orientation routes cables below the mounting surface.
- High-quality materials and robust design ensure asecure and reliable retention of cables.
- Specifically designed to fit M5 and M6 studs, making them perfect for a wide range of automotive applications.
| Color | Black (BK) |

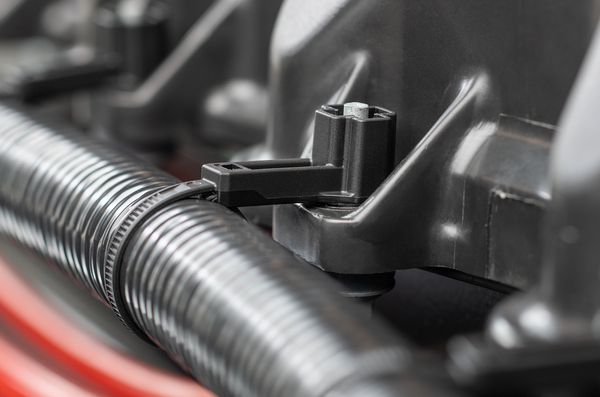

| Description | One-piece cable tie with offset stud mount positions bundles away from obstructions, heat or sources of abrasion. With its low push-on force and high pull-off strength, this mounting tie offers the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. |
| Global Part Number | T50ROSM6SMSO25B-PA66HIRHSUV-BK |
| Part Number | 157-04147 |
| Product Family | Self-Affixing Cable Ties |
| Product Subfamily | Stud Mount Cable Ties |
| Short Description | Offset M5/T5/M6 Stud Mount Tie, B-Series, 8.8" L, 50 lb Tensile Strength, PA66HIRHSUV, Blk, 2000/carton |
| Type | T50ROSM6SMSO25B |
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.08" |
| Bundle Diameter Min. (metric) | 2.0mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Stud Mount |
| Height (imperial) | 0.59" |
| Height (metric) | 15.0mm |
| Identification Plate Position | none |
| Length (imperial) | 8.8" |
| Length (metric) | 224.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.20 x 0.03 ", 0.24 x 0.04 ", 0.20 " |
| Mounting Hole Diameter (metric) | M5 x 0.8, M6 x 1, T5 |
| Mounting Hole Diameter Max. (imperial) | 0.24" |
| Mounting Hole Diameter Min. (imperial) | 0.2" |
| Mounting Hole Shape | Round |
| Offset Length (imperial) | 1.0" |
| Offset Length (metric) | 25.5mm |
| Releasable Closure (Y/N) | No |
| Stud Diameter (metric) | 5.0 mm, 6.0 mm |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.35mm |
| Width (imperial) | 0.19" |
| Width (metric) | 4.7mm |
| CE Certification | No |
| CSA Certified | No |
| Hazardous Goods | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
