Offset Low-Profile M6/M5 Stud Mount Tie, 7.5" Tie, 50lb Tensile Strength, PA46, Brown, 3000/pkg
Art.-No. 157-00338
|
|
Copied

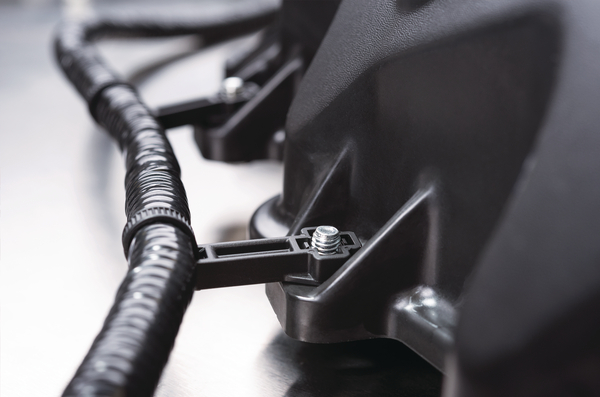

- Offset design positions bundles away from obstructions, heat or sources of abrasion.
- Low profile head allows mounts to stack, providing more mounting versatility from a single stud.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
- PA46 material option allows use in high-heat applications..
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Color | Brown (BN) |
| Description | One-piece cable tie with stud mount features an offset design to position bundles away from obstructions, heat or sources of abrasion. It includes a low-profile head, allowing multiple tie mounts to be stacked on a single bolt and providing space savings in tight areas. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options. |
| Global Part Number | T50ROSLPM6SMSO25-PA46-BN |
| Packaging Type | pack |
| Part No. | 157-00338 |
| Product Subfamily | Stud Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | Offset Low-Profile M6/M5 Stud Mount Tie, 7.5" Tie, 50lb Tensile Strength, PA46, Brown, 3000/pkg |
| Type | T50ROSLPM6SMSO25 |
| UV Resistant | No |
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.08" |
| Bundle Diameter Min. (metric) | 2.0mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Stud Mount |
| Height (imperial) | 0.25" |
| Height (metric) | 6.30mm |
| Identification Plate Position | none |
| Length (imperial) | 8.8" |
| Length (metric) | 223.52mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.24 x 0.04 " |
| Mounting Hole Diameter (metric) | M6 x 1 |
| Mounting Hole Shape | Round |
| Offset Length (imperial) | 1.0" |
| Offset Length (metric) | 25.5mm |
| Releasable Closure | No |
| Stud Diameter (imperial) | 0.20 ", 0.24" |
| Stud Diameter (metric) | 5.0 mm, 6.0 mm |
| Width (imperial) | 0.56" |
| Width (metric) | 14.2mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Material | PA46 |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature | -40°F to +266°F (-40°C to +130°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
