1-Piece Cable Tie with Fir Tree Mount with Disc, 8"L, M6 Threaded Hole, PA66HIRHSUV, Black, 500/bg
Art.-No. 157-00112
|
|
Copied
- One-piece design allows installers to mount and bundle wire or cables single-handedly.
- Fastener delivers high pull-out force for reliable performance, yet it’s easy to install.
- Can be unscrewed or extracted from threaded holes for easy removal and reusability.
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer. |
| Color | Black (BK) |
| Description | HellermannTyton Blind Hole Mount Cable Tie for Threaded Holes offers an easy-to-use method for bundling and affixing cables. The one-piece mount offers a low push-in force and aggressively resists pull out, for secure attachment to panels with thicknesses from 0.02" to 0.28" or threaded blind holes. The disc on top of the mount covers the hole and minimizes ingress of water and debris. |
| Global Part Number | T50ROSFTQM6-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 157-00112 |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 1-Piece Cable Tie with Fir Tree Mount with Disc, 8"L, M6 Threaded Hole, PA66HIRHSUV, Black, 500/bg |
| Type | T50ROSFTQM6 |
| UV Resistant | Yes |
|
|
|
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.08" |
| Bundle Diameter Min. (metric) | 2.0mm |
| Cable Tie Closure | plastic pawl |
| Diameter (imperial) | 0.25" |
| Diameter (metric) | 6.0mm |
| Disc Diameter (imperial) | 0.31" |
| Disc Diameter (metric) | 16mm |
| Fir Tree Length (metric) | 13.8mm |
| Fixation Method | Fir tree for round holes |
| Height (imperial) | 0.54" |
| Height (metric) | 13.83mm |
| Hole Depth Max. (imperial) | 0.28" |
| Hole Depth Max. (metric) | 7.0mm |
| Hole Depth Min. (imperial) | 0.13" |
| Hole Depth Min. (metric) | 3.25mm |
| Identification Plate Position | none |

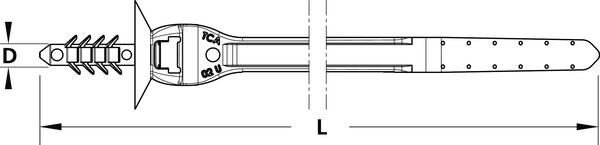

| Length (imperial) | 8.0" |
| Length (metric) | 203.2mm |
| Length 2 (imperial) | 0.64" |
| Length 2 (metric) | 16.13mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 222.4N |
| Mounting Hole Diameter (metric) | M6 |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.13 - 0.28" |
| Panel Thickness (metric) | 3.25 - 7.0mm |
| Panel Thickness Max. (Imperial) | 0.28" |
| Panel Thickness Max. (Metric) | 7.0mm |
| Panel Thickness Min. (Imperial) | 0.13" |
| Panel Thickness Min. (Metric) | 3.25mm |
| Releasable Closure | No |
| Thickness (imperial) | 0.06" |
| Thickness (metric) | 1.5mm |
| Width (imperial) | 0.20" |
| Width (metric) | 5.08mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
