Series 7 One-Piece Cable Tie with Offset Fir Tree with Disc, 25mm/90˚ Offset, 9.4"L, 6.1 - 7.0 mm Hole, 50lb, PA66HIRHSUV, Black, 3000/ctn
Part No. 904-02662
|
Copied
- Rotated Offset Cable Ties with Fir Tree secures and fastens bundles away from obstructions, heat or sources of abrasion.
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Versatile high performance fir tree design demonstrates easy insertion with high extraction resistance.
- Accommodates bundle diameters from 0.1 to 2 inches, highly versatile for an all-in-one solution.
| Color | Black (BK) |
| Compatible with | First Solar - Series 6 |
| Description | Series 7 offset cable tie routes and positions bundles away from a mounting hole. Rigid offset bar eliminates potential bending of wire or cables once installed. Multiple offset distances and fir tree sizes cover the majority of industry offset applications. The tie strap’s outside serration provides a smooth surface to protect soft cable insulation. HellermannTyton’s one-piece mounting ties offer a complete solution by both bundling and mounting. Their ideal combination of high-specification materials and superior design suit the needs of complex applications. |
| Global Part Number | T50ROSFT6SO25R-PA66HIRHSUV-BK |
| Part Number | 904-02662 |
| Product Family | Self-Affixing Cable Ties |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Short Description | Series 7 One-Piece Cable Tie with Offset Fir Tree with Disc, 25mm/90˚ Offset, 9.4"L, 6.1 - 7.0 mm Hole, 50lb, PA66HIRHSUV, Black, 3000/ctn |
| Type | T50ROSFT6SO25R |
| Bundle Diameter Max. (imperial) | 1.968503935" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.6mm |
| Fixation Method | Fir tree for round holes |
| Height (imperial) | 0.97" |
| Height (metric) | 15.1mm |
| Hole Depth Max. (imperial) | 0.32" |
| Hole Depth Max. (metric) | 8.25mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |

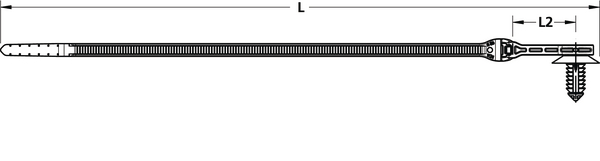

| Length (imperial) | 9.4" |
| Length (metric) | 237.7mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 222N |
| Mounting Hole Diameter (imperial) | 0.24 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.1 - 7.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.28" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Offset Length (imperial) | 0.98" |
| Offset Length (metric) | 25.0mm |
| Panel Thickness (imperial) | 0.02 - 0.32" |
| Panel Thickness (metric) | 0.6 - 8.25mm |
| Panel Thickness Max. (Imperial) | 0.32" |
| Panel Thickness Max. (Metric) | 8.25mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.20" |
| Width (metric) | 5.1mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
