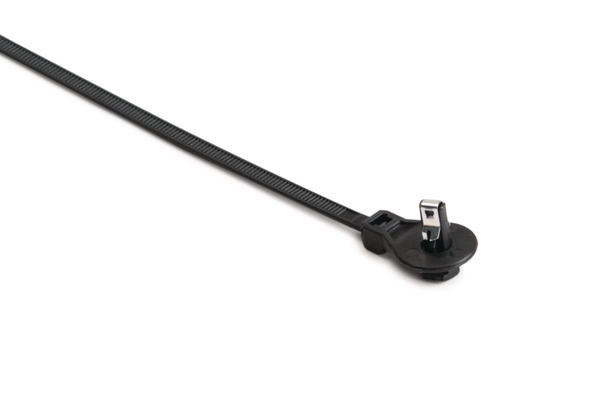

Blind Hole Mount Cable Tie for 6.3 mm Hole, 18 mm Offset, 8" L, 50lb, PA66HIRHSUV, Black, 3000/ctn
Art.-No. 113-00071
|
|
Copied
- Offset mount allows wire or cable to be attached beside mounting hole instead of directly above it.
- Reusable fastener can be extracted from threaded or nonthreaded holes using a 5/16" hex driver.
- Delivers high extraction force for reliable performance, yet it’s easy to install.
- Heat stabilized material provides excellent resistance to high temperatures.
| Application | Blind Hole Mount Offset Cable Ties secure bundles beside the mounting hole instead of directly above it. The two-piece design includes a heat modified cable tie and formula-matched, hex-head fastener that features a low insertion force and aggressively resists pull off. Performs equally well in threaded or non-threaded blind holes. Since cable or wire bundle is beside the fastener, the assembly can be removed from the mounting hole without cutting the cable tie using a hex driver. The fastener can then be reused. |
| Color | Black (BK) |
| Description | Blind Hole Mount Offset Cable Ties secure bundles beside the mounting hole instead of directly above it. The unique design includes a heat stabilized cable tie and formula-matched, hex-head fastener that features a low insertion force and aggressively resists pull off. Performs equally well in threaded or non-threaded blind holes. Since cable or wire bundle is beside the fastener, the assembly can be removed using a hex driver from the mounting hole without cutting the cable tie. The fastener can then be reused. |
| PART DESCRIPTION | T50ROSBHMBTIE-PA66HIRHSUV-BK |
| Packaging Type | box |
| Part No. | 113-00071 |
| Product Subfamily | Blind Hole Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | Blind Hole Mount Cable Tie for 6.3 mm Hole, 18 mm Offset, 8" L, 50lb, PA66HIRHSUV, Black, 3000/ctn |
| Type | T50ROSBHMBTIE |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.08" |
| Bundle Diameter Min. (metric) | 2.0mm |
| Diameter (imperial) | 0.70" |
| Diameter (metric) | 17.85mm |
| Fixation Method | Blind Plug |
| Identification Plate Position | none |
| Length (imperial) | 8.61" |
| Length (metric) | 218.71mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Shape | Round |
| Offset Length (imperial) | 0.71" |
| Offset Length (metric) | 18.0mm |
| Releasable Closure | No |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
