2-Piece Cable Tie with Pipe Clip, 50lbs, Clip Dia .26"-.3" Max Bun Dia 1.38" PA66UV Tie, HIRHS Mount, BLK 500/pkg
Part No. 156-00594
|
Copied
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
- 2-piece design allows installer to slide clip around cable tie to obtain optimum orientation
- Clip is reusable, making relocation or adjustments simple.
| Color | Black (BK) |

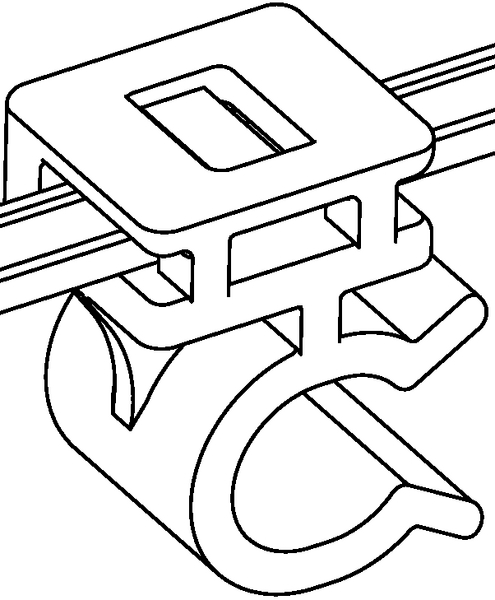

| Description | HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners. |
| Global Part Number | T50ROC2-PA66HSUV/PA66HIRHS-BK |
| Part Number | 156-00594 |
| Product Family | 2-Piece Tie Assemblies |
| Product Subfamily | Pipe Clip Cable Ties |
| Short Description | 2-Piece Cable Tie with Pipe Clip, 50lbs, Clip Dia .26"-.3" Max Bun Dia 1.38" PA66UV Tie, HIRHS Mount, BLK 500/pkg |
| Type | T50ROC2 |
| Attaches to Diameter (imperial) | 0.26 - 0.30 " |
| Attaches to Diameter (metric) | 6.5 - 7.5 |
| Bundle Diameter Max. (imperial) | 1.7716535414999999" |
| Bundle Diameter Max. (metric) | 45.0mm |
| Bundle Diameter Min. (imperial) | 0.26" |
| Bundle Diameter Min. (metric) | 6.5mm |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Length (imperial) | 8.0" |
| Length (metric) | 202.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Width (imperial) | 0.18" |
| Width (metric) | 4.6mm |
| Affixing Part Material | PA66HIRHS |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 UV-stabilized (PA66UV) |
| Flammability | UL 94 V-2 |
| Material | PA66HSUV, PA66HIRHS |
| Material | Polyamide 6.6 heat and UV stabilized (PA66HSUV), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
