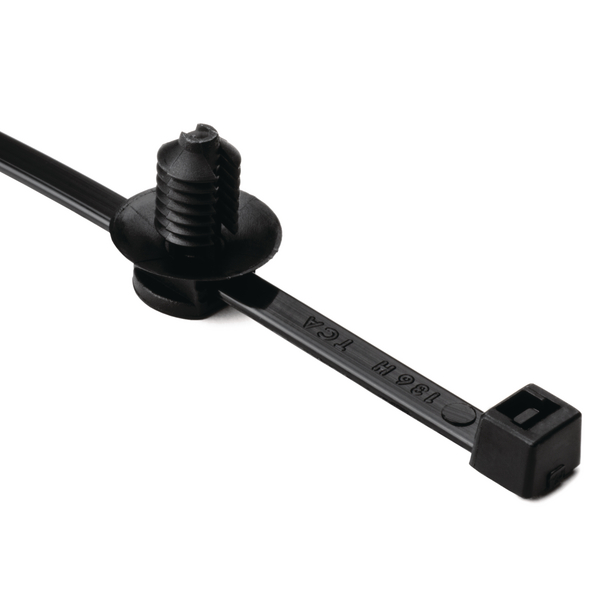

2-Piece Cable Tie with Fir Tree Mount, 8.0" Long, 0.26 - 0.28", Mounting Hole, PA66HS, Black, 500/pkg
Art.-No. 150-31091
|
|
Copied
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
| Application | This fir tree mount and cable tie assembly is ideal for use in applications where the ease of insertion and the difficulty of accidental extraction is a high priority. Fir tree mounts can be used in a wide range of applications throughout various types of products; anything from aircraft, to switch-gears, to washing machines. |
| Color | Black (BK) |
| Description | HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie. |
| Global Part Number | T50RFT6LG-PA66HS/PA66HIRHS-BK |
| Packaging Type | pack |
| Part No. | 150-31091 |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 2-Piece Cable Tie with Fir Tree Mount, 8.0" Long, 0.26 - 0.28", Mounting Hole, PA66HS, Black, 500/pkg |
| Type | T50RFT6LG |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 1.77" |
| Bundle Diameter Max. (metric) | 45.0mm |
| Bundle Diameter Min. (imperial) | 0.2" |
| Bundle Diameter Min. (metric) | 5.0mm |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (imperial) | 0.63" |
| Disc Diameter (metric) | 16.0mm |
| Fir Tree Length (metric) | 11.1mm |
| Fixation Method | Fir tree for round holes |
| Harness Rotation (Y/N) | NO |
| Height (imperial) | 0.05" |
| Height (metric) | 1.2mm |
| Height 2 (imperial) | 0.44" |
| Height 2 (metric) | 11.1mm |
| Identification Plate Position | none |
| Length (imperial) | 8.0" |
| Length (metric) | 202.0mm |
| Length 2 (imperial) | 0.46" |
| Length 2 (metric) | 11.6mm |
| Length 3 (imperial) | 0.69" |
| Length 3 (metric) | 17.5mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.26 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.5 - 7.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.28" |
| Mounting Hole Diameter Min. (imperial) | 0.26" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.03 - 0.24" |
| Panel Thickness (metric) | 0.75 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.03" |
| Panel Thickness Min. (Metric) | 0.75mm |
| Releasable Closure | No |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.2mm |
| Width (imperial) | 0.18" |
| Width (metric) | 4.6mm |
| Width 2 (imperial) | 0.35" |
| Width 2 (metric) | 9.0mm |
| Width 3 (imperial) | 0.2" |
| Width 3 (metric) | 5.0mm |
| Affixing Part Material | PA66HIRHS |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| Material | PA66HS, PA66HIRHS |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
