Blind Hole Mount Inside Serrated Cable Tie, PA66HIRHSUV/POM, Black, 3000/ctn
Art.-No. 156-03287
|
|
Copied
- Delivers high pull-out force for reliable performance, yet it’s easy to install.
- Reusable fastener can be extracted from threaded or nonthreaded holes using a 5/16" hex driver.
- Heat-stabilized material provides excellent resistance to high temperatures.
| Application | A “blind hole” goes to a specific depth without continuing through the opposite end. It prevents a screw or other fastener from poking through and potentially damaging other components. Turning screws and adding extra hardware can be time consuming. Blind Hole Mount Cable Ties accelerate and simplify the mounting process. No tools needed–simply press for an instant, secure attachment. |
| Color | Black (BK) |
| Description | HellermannTyton Blind Hole Mount Cable Ties for threaded and nonthreaded holes offer an easy-to-use method for bundling and affixing cables. The two-piece design includes a heat-stabilized cable tie and formula-matched, 1/4" mount that features a low push-in force and aggressively resists pull out. Performs equally well in threaded or nonthreaded blind holes. Mount can slide along cable tie to adjust orientation if needed. Fastener can be removed from hole using a hex driver, ensuring reuse if desired. |
| PART DESCRIPTION | T50RBHM8-PA66HIRHSUV/POM-BK |
| Packaging Type | pack |
| Part No. | 156-03287 |
| Product Subfamily | Blind Hole Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | Blind Hole Mount Inside Serrated Cable Tie, PA66HIRHSUV/POM, Black, 3000/ctn |
| Type | T50RBHM8 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.5mm |
| Cable Tie Head Length (imperial) | 0.29" |
| Cable Tie Head Length (metric) | 7.3mm |
| Cable Tie Head Width (imperial) | 0.30" |
| Cable Tie Head Width (metric) | 7.6mm |
| Disc Diameter (imperial) | 0.53" |
| Disc Diameter (metric) | 13.5mm |
| Fixation Method | Blind Plug |
| Height (imperial) | 0.62" |
| Height (metric) | 15.75mm |
| Height 2 (imperial) | 0.83" |
| Height 2 (metric) | 21.1mm |
| Hole Depth Min. (imperial) | 0.43" |
| Hole Depth Min. (metric) | 14.0mm |
| Identification Plate Position | none |

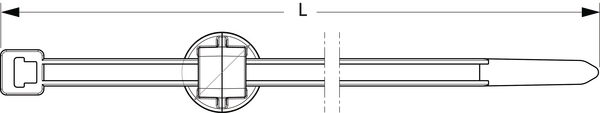

| Length (imperial) | 7.9" |
| Length (metric) | 202.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.31 " |
| Mounting Hole Diameter (metric) | 8.0 mm |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.55" |
| Panel Thickness (metric) | 14.0mm |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.2mm |
| Width (imperial) | 0.18" |
| Width (metric) | 4.6mm |
| Width 2 (imperial) | 0.53" |
| Width 2 (metric) | 13.5mm |
| Affixing Part Material | POM |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, POM |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Polyacetal (POM) |
| Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
