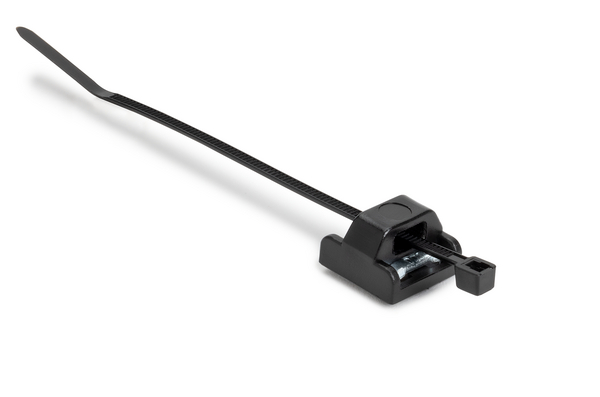

2-Piece Cable Tie/Magnet Mount, Unassembled Set, 0.6 x 0.6", Magnet/POM/ST, 5lb Pull, Black, 100/Box
Art.-No. 156-03231
|
|
Copied
- No drilling or extra hardware required – just secure to steel surface.
- Magnetic mounts are reliable even in debris, dirt, and oil.
- Use for permanent mounting or as a temporary installation tool.
- Reuse and reposition capabilities allow for a flexible mounting solution.
- Easily remove without residue.
Show more
Show less
| Color | Black (BK) |

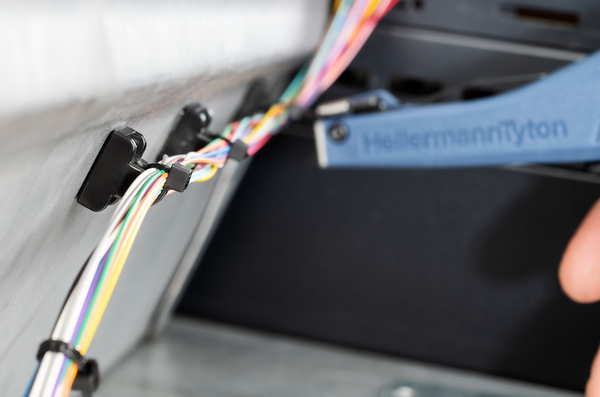

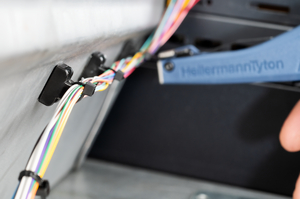

| Description | Magnetic cable tie mount with T18R tie routes bundles by securing to steel surfaces without the need for a mounting hole. Simply attach the wire bundle to the mount with the cable tie and position it onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. The mounts are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts. |
| Magnetic pull strength (N) | 22N |
| Magnetic pull strength (kgf) | 2.24 |
| Magnetic pull strength (lb/ft) | 5lbf-ft |
| PART DESCRIPTION | T18RMAGCTM5MSET-NDFEB35M/POM/ST/PA66HS-BK |
| Packaging Type | pack |
| Part No. | 156-03231 |
| Product Subfamily | Magnetic Cable Tie Mounts |
| Product family | Magnetic Mounts |
| Rotation (°) | 0° |
| Short Description | 2-Piece Cable Tie/Magnet Mount, Unassembled Set, 0.6 x 0.6", Magnet/POM/ST, 5lb Pull, Black, 100/Box |
| Type | T18RMAGCTM5MSET |
| Bundle Diameter Max. (imperial) | 0.87" |
| Bundle Diameter Max. (metric) | 22.0mm |
| Bundle Diameter Min. (imperial) | 0.2" |
| Bundle Diameter Min. (metric) | 5mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Magnet |
| For Cable Tie Series | T18 |
| Height (imperial) | 0.41" |
| Height (metric) | 10.5mm |
| Identification Plate Position | none |
| Length (imperial) | 0.6" |
| Length (metric) | 15.3mm |
| Length 2 (imperial) | 3.94" |
| Length 2 (metric) | 100.0mm |
| Max. Cable Tie Width (imperial) | 0.25" |
| Max. Cable Tie Width (metric) | 6.3mm |
| Min. Tensile Strength (imperial) | 18lbs |
| Min. Tensile Strength (metric) | 80N |
| Releasable Closure | No |
| Thickness (imperial) | 0.039" |
| Thickness (metric) | 1mm |
| Width (imperial) | 0.59" |
| Width (metric) | 15mm |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Halogen Free | Yes |
| Material | NDFEB35M, POM, ST, PA66HS |
| Material | Neodymium alloy 35M (NDFEB35M), Polyacetal (POM), Steel (ST), Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Plenum Rating | AH-2 |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
