2-Piece Cable Tie with Screw Mount, 15" Long, M6 Hole, 4.1" Max Bundle Dia, 120lb, PA66HIRHS, Black, 500/ctn
Part No. 156-03055
|
Copied
- Two-piece cable tie and mount allows for a wide range of bundle sizes.
- A suitable alternative for metal clamps.
- Robust design withstands vibration and displacement forces.
- Metal bushing allows for high tightening torque.
| Color | Black (BK) |

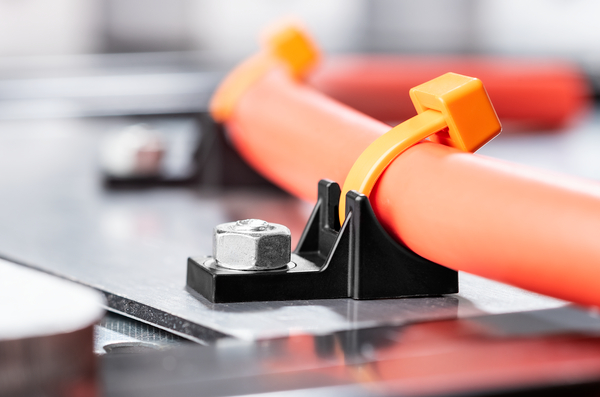

| Description | These cable tie mounts attach with a screw or bolt to an existing hole, or secure to a stud with a nut. They provide an attachment point for securing and routing a single bundle. These mounts provide the highest level of fastening for critical cable security. |
| PART DESCRIPTION | T120RCPCM6-SET-PA66HIRHS-BK |
| Packaging Type | pack |
| Part No. | 156-03055 |
| Product Subfamily | Screw Mount Ties |
| Product family | 2-Piece Tie Assemblies |
| Short Description | 2-Piece Cable Tie with Screw Mount, 15" Long, M6 Hole, 4.1" Max Bundle Dia, 120lb, PA66HIRHS, Black, 500/ctn |
| Type | T120RCPCM6-SET |
| Bundle Diameter Max. (imperial) | 4.13" |
| Bundle Diameter Max. (metric) | 105.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Screw Mount |
| Height (imperial) | 0.61" |
| Height (metric) | 16.0mm |
| Identification Plate Position | none |
| Length (imperial) | 14.96" |
| Length (metric) | 390.0mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | 6.2 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | M6 Screw |
| Releasable Closure | No |
| Stud Diameter (imperial) | 0.24" |
| Width (imperial) | 0.30" |
| Width (metric) | 7.6mm |
