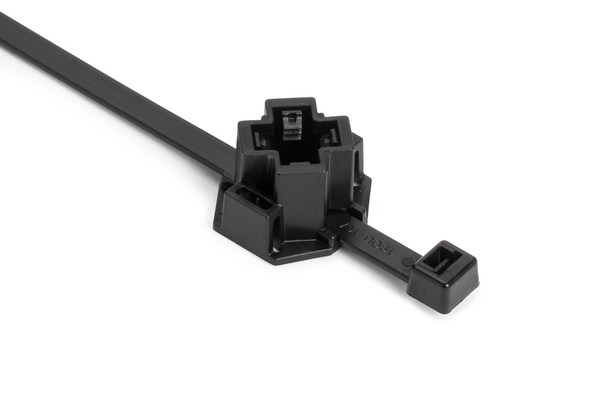

2-Piece M12 Stud Mount Tie, 15" Long Tie, 120lb Tensile Strength, PA66HIRHSUV, BK, 1000/pkg
Part No. 156-03867
|
Copied

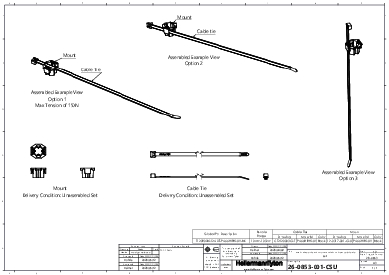

- Versatile design allows cable routing above, perpendicular or parallel to stud.
- Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure
| Color | Black (BK) |
| Description | Unique, two-piece cable tie and stud mount combination allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With its low insertion force and high extraction performance, HellermannTyton’s mounting tie offers the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. |
| Global Part Number | T120R0SBS12A-SET-PA66HIRHSUV-BK |
| Part Number | 156-03867 |
| Product Family | Self-Affixing Cable Ties |
| Short Description | 2-Piece M12 Stud Mount Tie, 15" Long Tie, 120lb Tensile Strength, PA66HIRHSUV, BK, 1000/pkg |
| Type | T120R0SBS12A-SET |
| Bundle Diameter (metric) | 10-105mm |
| Bundle Diameter Max. (imperial) | 4.13" |
| Bundle Diameter Max. (metric) | 105mm |
| Bundle Diameter Min. (imperial) | 0.39" |
| Bundle Diameter Min. (metric) | 10mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Weld Stud |
| Height (imperial) | 0.08" |
| Height (metric) | 20.4mm |
| Identification Plate Position | none |
| Length (imperial) | 15" |
| Length (metric) | 381mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Releasable Closure (Y/N) | No |
| Stud Diameter (imperial) | 0.47" |
| Stud Diameter (metric) | 12.0 mm |
| Width (imperial) | 1.18" |
| Width (metric) | 30.1mm |
| Affixing Part Material | PA66HIRHSUV |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
