Soft-Grip Ratchet O-Clamp, 6.5 mm Fir Tree Mount, 0.61 - 0.79" Bundle, PA66HIRHSUV/TPE, Black, 1000/ctn
Part No. 151-04075
|
Copied
- Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
- Long 6.5 mm fir tree allows clip to be installed in panels up to 6 mm thick and hole sizes from 6.1 - 7.0 mm.
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
- Fully enclosed clamp prevents slip, crush and fallout under vacuum.
- Release feature opens by inserting a screwdriver, allowing the clamp to be reused or serviced without removing it from mounting surface. .
Show more
Show less
| Color | Black (BK) |
| Description | The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Designed for fluid routing and high-voltage cable management, this clamp includes a TPE liner to protect the routing and keep it in position. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware. |
| Global Part Number | SGROC15.5-20FT6.5-PA66HIRHSUV/TPE-BK |
| Part Number | 151-04075 |
| Product Family | Ratchet Clamps |
| Product Subfamily | Ratchet O-Clamps with Soft-Grip |
| Short Description | Soft-Grip Ratchet O-Clamp, 6.5 mm Fir Tree Mount, 0.61 - 0.79" Bundle, PA66HIRHSUV/TPE, Black, 1000/ctn |
| Type | SGROC15.5-20FT6.5 |

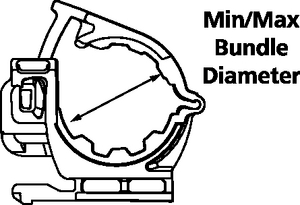

| Bundle Diameter Max. (imperial) | 0.79" |
| Bundle Diameter Max. (metric) | 20.0mm |
| Bundle Diameter Min. (imperial) | 0.61" |
| Bundle Diameter Min. (metric) | 15.5mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 2.26" |
| Height (metric) | 57.5mm |
| Length (imperial) | 2.29" |
| Length (metric) | 58.1mm |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| Mounting Hole Diameter (imperial) | 0.24 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.1 - 7.0 mm |
| Mounting Hole Shape | Circular |
| Panel Thickness (imperial) | 0.02 - 0.24" |
| Panel Thickness (metric) | 0.6 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.81" |
| Width (metric) | 20.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Hazardous Goods | No |
| Material | PA66HIRHSUV, TPE |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Reusable (Y/N) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
