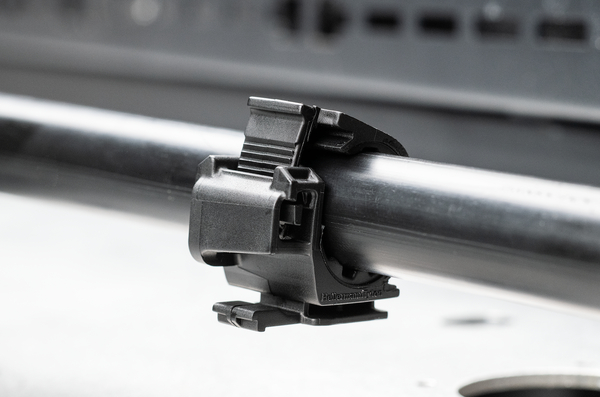

Soft-Grip Ratchet O-Clamp, 17mm Connector Clip, 0.61 - 0.79" Bundle Dia, PA66HIRHSUV/TPE, Black, 1000/ctn
Part No. 151-04074
|
Copied
- Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
- Compatible with all HellermannTyton standard USCAR17 connector clip mounts.
- Compact size for mounting in tight spaces.
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
- Fully enclosed clamp prevents slip, crush and fallout under vacuum.
- Release latch with simple twist of screwdriver.
Show more
Show less
| Color | Black (BK) |
| Connection Type | USCAR17 |
| Description | The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Designed for fluid routing and high-voltage cable management, this clamp includes a TPE liner to protect the routing and keep it in position. HellermannTyton's connector clips provide a single method to mount connectors to various surfaces in a variety of applications. Clips can be paired with brackets for custom routing needs. |
| Global Part Number | SGROC15.5-20CLIP17-PA66HIRHSUV/TPE-BK |
| Part Number | 151-04074 |
| Product Family | Ratchet Clamps |
| Product Subfamily | Ratchet O-Clamps with Soft-Grip |
| Short Description | Soft-Grip Ratchet O-Clamp, 17mm Connector Clip, 0.61 - 0.79" Bundle Dia, PA66HIRHSUV/TPE, Black, 1000/ctn |
| Type | SGROC15.5-20CLIP17 |
| Bundle Diameter Max. (imperial) | 0.79" |
| Bundle Diameter Max. (metric) | 20.0mm |
| Bundle Diameter Min. (imperial) | 0.61" |
| Bundle Diameter Min. (metric) | 15.5mm |
| Fixation Method | Connector Clip |
| Height (imperial) | 1.89" |
| Height (metric) | 48.1mm |
| Length (imperial) | 2.29" |
| Length (metric) | 58.1mm |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| Width (imperial) | 0.81" |
| Width (metric) | 20.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, TPE |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Reusable (Y/N) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
